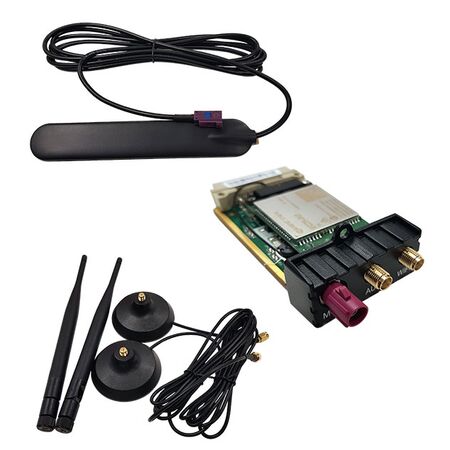

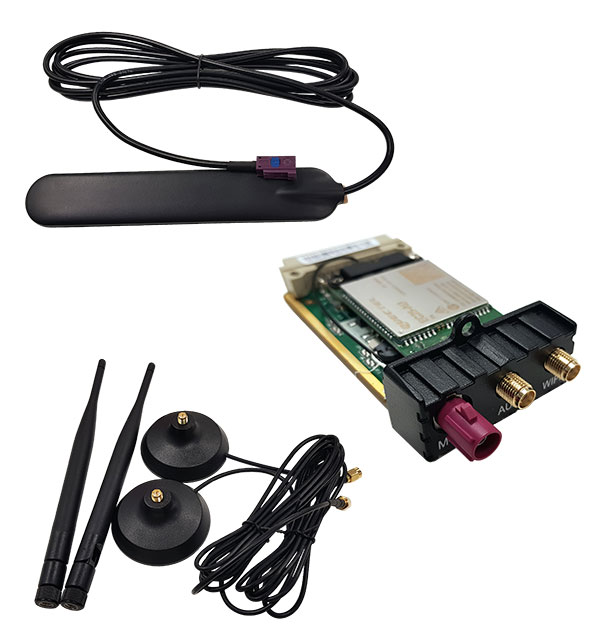

Mobile 4G and WiFi Module Hikvision
Hikvision 4G and WiFi module features 4G and WiFi connectivity. Ideal for mobile CCTV installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision Mobile Wireless Component, Hikvision 4G WiFi Module, Hikvision DS-83152HM/GLF/WI
Technical Specifications
- Wireless Connectivity: 4G LTE and IEEE 802.11b/g/n WiFi
- 4G Frequency Bands: FDD LTE B1/B2/B3/B4/B5/B7/B8/B20; WCDMA B1/B2/B5/B8
- WiFi Frequency: 2.4 GHz to 2.4835 GHz
- Power Supply: 5 VDC
- Power Consumption: Less than 0.1 W standby; less than 5 W full load
- Operating Temperature: -20°C to +60°C
- Operating Humidity: 10% to 95%
- Antenna Connection: SMA antenna connections
- SIM Interface: 4G card slot
- GPS Compatibility: GNSS/GPS option available
- Dimensions (H x L x W): 25.5mm x 96.5mm x 45mm
- Weight: 0.1 kg
Key Features
- Adds mobile 4G connectivity to compatible Hikvision mobile CCTV equipment
- Provides WiFi connectivity using IEEE 802.11b/g/n
- Suitable for mobile and vehicle-mounted surveillance installations
- Supports multiple LTE and WCDMA frequency bands
- Compact plug-in wireless module design
- Optional GPS/GNSS positioning support on compatible configurations
Professional Installation Requirements
- Installation should be completed by a suitably qualified CCTV or communications technician inside compatible Hikvision equipment. Confirm the correct module variant, antenna arrangement and SIM compatibility before installation.
Applications
- Mobile CCTV installations
- Vehicle-mounted surveillance systems
- Transport and fleet monitoring equipment
- Remote video transmission where fixed broadband is unavailable
- Temporary or mobile security deployments
Standards & Compliance
- AS/NZS 62676.1.1:2020 — applicable to the video surveillance system into which the module is integrated; product-specific Australian certification was not stated
Environmental Benefits
- Low-power operation, with less than 5 W full-load consumption
- Enables remote surveillance and diagnostics, which can reduce travel to mobile installation sites
- Compact modular design can support equipment repair or upgrade without replacing the complete CCTV system
Warranty Information
Hikvision warranty support is available through authorised Australian distribution channels. A product-specific warranty period for the DS-83152HM module was not stated in the manufacturer's publicly available documentation; confirm the applicable term at purchase.
Available Now
Available through Hikvision and authorised Australian security equipment distributors, subject to model compatibility and regional availability.
