Trade Discount 25%

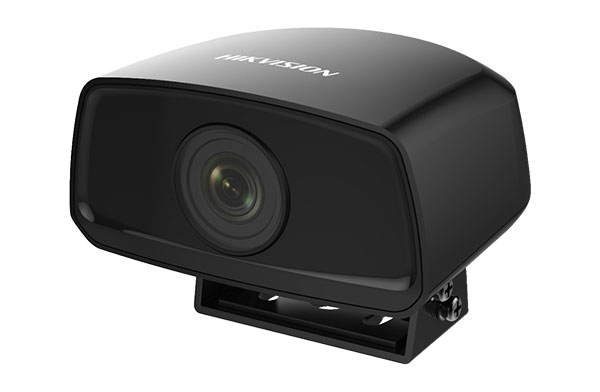

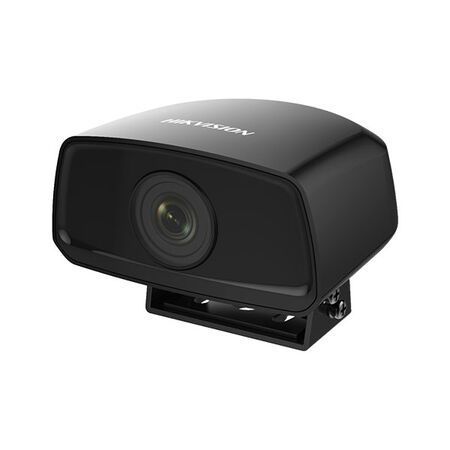

Mobile IP Camera RJ45 2.8mm Hikvision
Hikvision mobile IP camera features an RJ45 connection and a 2.8mm lens. Ideal for in-vehicle mobile surveillance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision mobile network camera, vehicle IP camera, onboard surveillance camera, fixed mobile CCTV camera
Technical Specifications
- Model: DS-2XM6522G1-I/ND(2.8mm)
- Resolution: 2MP, up to 1920 × 1080
- Image Sensor: 1/2.8-inch progressive scan CMOS
- Lens: Fixed 2.8mm, F1.6 aperture
- Horizontal Field of View: Approximately 105°
- Infrared Range: Up to 30m, 850nm IR
- Video Compression: H.265+, H.265, H.264+, H.264 and MJPEG
- Dynamic Range: 120dB WDR
- Network Interface: 1 × RJ45 10/100Mbps self-adaptive Ethernet port
- Power Supply: PoE 802.3af, Type 1 Class 3
- Maximum Power Consumption: 10W
- Local Storage: Micro TF/microSD card up to 256GB
- Ingress and Impact Protection: IP68, IP69K and IK10
- Operating Temperature: -40°C to 75°C
- Operating Humidity: Less than 95%, non-condensing
- Material: Metal housing
- Dimensions (H x L x W): 65.1mm x 163.7mm x 122.6mm
- Weight: 0.905 kg
Key Features
- Designed for in-vehicle and mobile surveillance applications
- 2MP Full HD video with a wide-angle 2.8mm fixed lens
- RJ45 Ethernet connection with PoE power support
- 120dB true WDR for challenging backlit scenes
- Up to 30m infrared night vision
- IP68, IP69K and IK10 protection for harsh mobile environments
- Supports up to three simultaneous video streams
- Vehicle-oriented construction with vibration-resistant design
- Line crossing, intrusion, object and unattended baggage detection
- Compatible with Hikvision network video recorders and surveillance software
Professional Installation Requirements
- Installation should be performed by a suitably qualified security, automotive or electrical technician. The camera requires vehicle power or PoE network integration, secure mechanical mounting and appropriate routing and protection of cables.
Applications
- In-vehicle surveillance for buses, coaches, trucks and service vehicles
- Public transport and fleet monitoring
- Mobile security systems and onboard video recording
- Commercial vehicle cabin, side-view and external monitoring
- Surveillance in high-vibration, dust, moisture and temperature-variable environments
Standards & Compliance
- AS/NZS CISPR 32:2015 EMC emissions compliance listed in the manufacturer datasheet for the RCM approval
- AS/NZS 60950.1:2003 with amendments listed in the manufacturer datasheet as a legacy electrical safety approval
Environmental Benefits
- PoE connectivity combines data and power over a single Ethernet cable, reducing cabling and installation materials
- RoHS and REACH-related environmental compliance supports reduced use of restricted substances
- Metal construction and IP68, IP69K and IK10 protection can extend service life and reduce replacement waste
- Efficient network video compression can reduce storage and network bandwidth requirements
Warranty Information
Hikvision IP cameras are commonly covered by a 36-month manufacturer warranty through authorised Australian distribution channels, subject to the applicable Hikvision warranty and RMA terms.
Available Now
Available through Hikvision and authorised Australian security, telecommunications and vehicle-surveillance distributors.
