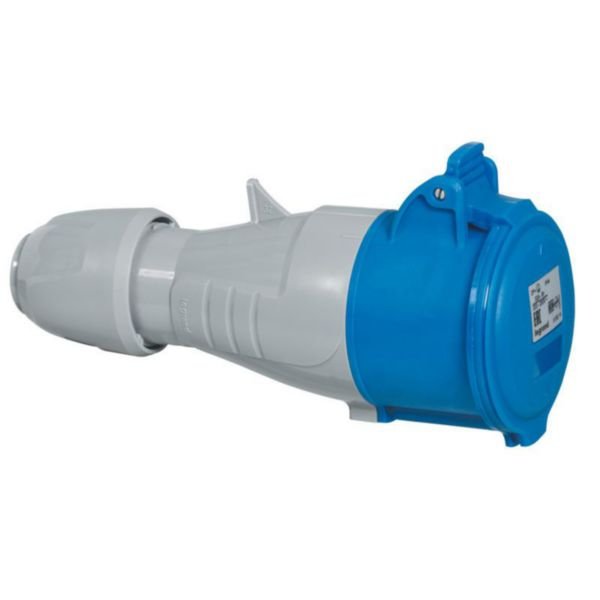

Mobile Socket P17 | IP44 Rated | 200/250V | 16A 2P+E | @Each of 1 | by Legrand
The Mobile Socket P17 is designed for reliable power distribution in industrial and commercial settings. With an IP44 rating for protection against splashing water and solid objects, it supports 200/250V voltage and 16A current. Ideal for factories, workshops, and outdoor events, this socket features a durable plastic construction and easy installation with a screwed terminal connection system.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Mobile Socket P17 | IP44 Rated | 200/250V | 16A 2P+E | @Each of 1 | by Legrand
Brand: Legrand
SKU: 555104
Alternatively Known As: Industrial mobile socket, P17 mobile socket, IP44 industrial socket, 16A industrial plug socket
Technical Specifications
- IEC Amperage: 16 A
- Number of Poles: 3 (2P+E)
- Voltage: 200-250 V (50+60 Hz)
- Clock Hour Position: 6 h
- Identification Colour: Blue (RAL 5005)
- Degree of Protection: IP44
- Connection System: Screwed terminal
- Insert Direction: Straight
- Cable Entry: Gland nut
- Material: Plastic
- Dimensions (H x L x W): 120mm x 150mm x 70mm
- Weight: 0.3 kg
Key Features
- IP44 rated for protection against splashing water and solid objects
- Rated for 200/250 V~ voltage and 16 A current
- 2 poles plus earth (2P+E) configuration
- Cable clamping and closing without screws for easy installation
- Supplied unlocked for immediate use
- Blue identification color for voltage classification
- Screwed terminal connection system
- Straight insert direction with gland nut cable entry
- Durable plastic material construction
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with safety standards and proper connection.
Applications
- Industrial: Factories, workshops, construction sites
- Commercial: Temporary power supply for events and maintenance
- Outdoor: Weather-protected power connections
Standards & Compliance
- AS/NZS 3123 – Industrial Plugs and Socket-Outlets
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- IP44 rating protects against environmental damage, extending product life
Warranty Information
Standard Legrand warranty applies, typically 2 years against manufacturing defects.
Available Now
The Legrand Mobile Socket P17 IP44 200/250V 16A 2P+E is available for immediate purchase, ideal for industrial and commercial power distribution applications.
