Trade Discount 33%
Modbus Communication Module RS485 | Smart Load Control | 24V DC by Clipsal
Modbus communication module with RS485 network and smart load control—ideal for small commercial applications. Built for efficient data transfer, compatible with up to 11 wired devices.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

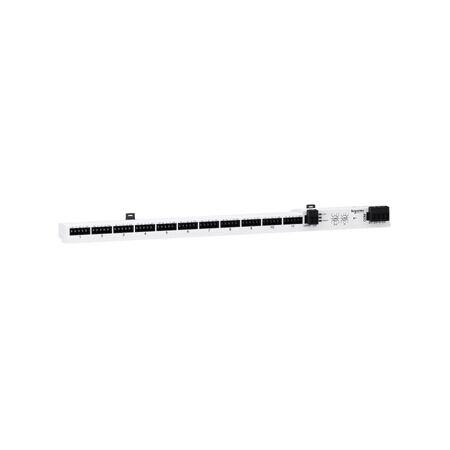

Product Name/Title: Acti9, Communication Module, Modbus, RS485
Brand: Clipsal
SKU: A9XMSB11
Alternatively Known As: Acti9 Smart Communication Module, Modbus Communication Module, RS485 Communication Module
Technical Specifications
- Protection type: Against reverse polarity for auxiliary supply and input, overvoltage at 33 V DC for digital output.
- Inrush current: 0.5 A for digital output, 7 A for power supply.
- Communication network type: RS485 Modbus RTU client/server.
- Maximum supply current: 1.5 A.
- Rated supply voltage: 24 V DC +/- 20 %.
- Dimensions (H x L x W): 22.5mm x 42mm x 359mm
- Weight: 0.188 kg
Key Features
- Smart communication module for load control and monitoring.
- Compatible with up to 11 wired devices.
- Modbus communication for efficient data transfer.
Professional Installation Requirements
- Professional installation is recommended for optimal performance.
Applications
- Buildings: Small commercial applications
- Load control and breaker status monitoring
- Basic energy metering
Standards & Compliance
- Complies with IEC 61010-2-201 and IEC 61010-1.
Environmental Benefits
- Green Premium product status.
Warranty Information
18 months warranty against manufacturing defects.
Available Now
The Clipsal Acti9 Communication Module is available now for immediate purchase. Ideal for small commercial applications.
