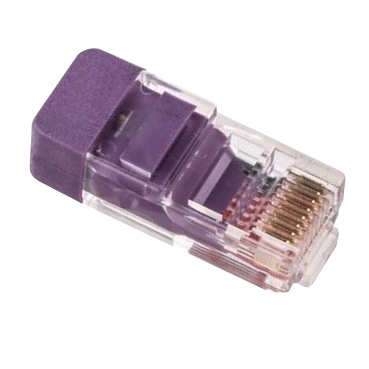

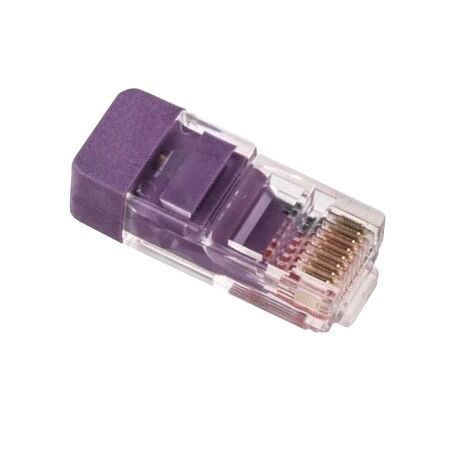

MODBUS RC Terminator RJ45 | 120 Ohm Resistance | Compact Design | Plug-and-Play Compatibility | by Clipsal
The MODBUS RC Terminator RJ45 is essential for ensuring proper line termination in RS485 Modbus networks. With a 120 Ohm resistance and a compact design, it guarantees reliable data transmission by minimizing signal reflections. Ideal for industrial automation and building management systems, this plug-and-play device is perfect for technicians looking to enhance network efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MODBUS RC Terminator RJ45 | 120 Ohm Resistance | Compact Design | Plug-and-Play Compatibility | by Clipsal
Brand: Clipsal
SKU: SCHVW3A8306RC
Alternatively Known As: Modbus line terminator, RS485 terminator, RJ45 Modbus terminator, Modbus end-of-line resistor, Clipsal Modbus terminator
Technical Specifications
- Type: Modbus RC line terminator
- Connector: RJ45
- Application: End of RS485 line
- Compatibility: Modbus communication networks
- Resistance: 120 Ohm (typical for RS485 termination)
- Operating temperature: -10°C to +60°C
- Dimensions (H x L x W): 15mm x 40mm x 20mm
- Weight: 0.1 kg
Key Features
- Provides proper line termination for RS485 Modbus networks
- RJ45 connector for easy installation
- Ensures reliable data transmission by reducing signal reflections
- Compact and robust design
- Plug-and-play compatibility with Modbus devices
Professional Installation Requirements
- Installation should be performed by a qualified technician familiar with RS485 Modbus networks to ensure correct placement and network integrity.
Applications
- Industrial automation systems
- Building management systems
- Energy monitoring and metering
- RS485 Modbus communication networks
- Commercial and industrial control panels
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Enhances network efficiency, reducing unnecessary retransmissions and energy use.
- Durable design minimizes replacement frequency, reducing electronic waste.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal MODBUS RC Terminator RJ45 (SCHVW3A8306RC) is available for immediate purchase. Ideal for terminating RS485 Modbus communication lines in industrial and commercial automation systems.
