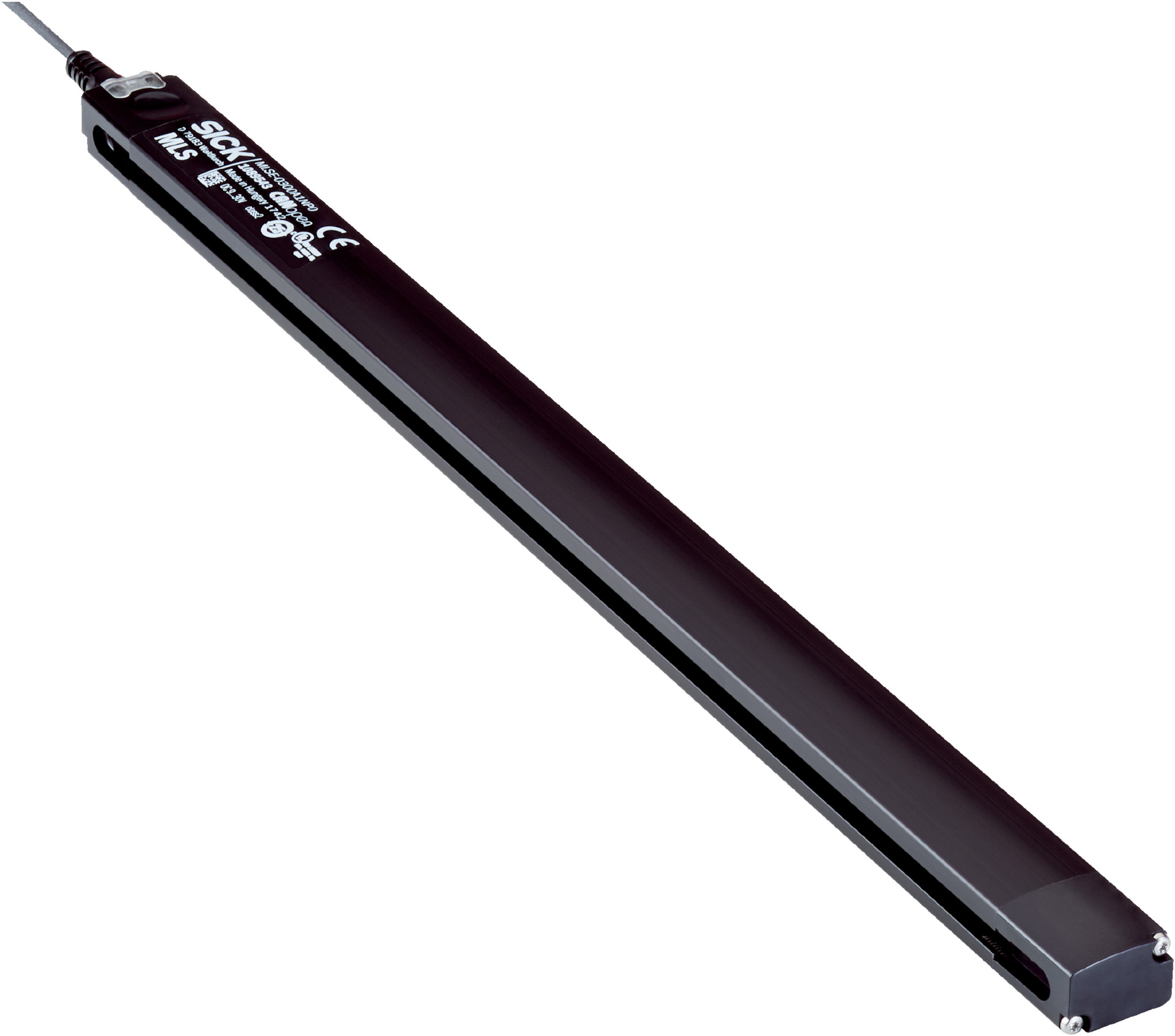

Modbus RTU Proximity Sensor | 200mm Detection Range | IP65/IP67/IP68 Rated | 100Hz Update Rate | by SICK
The Modbus RTU Proximity Sensor offers a typical detection range of 200 mm and operates effectively at heights from 10 mm to 70 mm. Designed for industrial automation, this sensor features a robust IP65/IP67/IP68 rated housing, ensuring durability in harsh environments. With a high resolution and repeat accuracy of 1 mm, it’s perfect for applications in robotics, machinery, and safety monitoring systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Detection range typical: 200 mm
- Operating height: 10 mm to 70 mm
- Electrical wiring: DC 4-wire
- Supply voltage: 9 V DC to 30 V DC
- Power consumption: 600 mW
- Resolution typical: 1 mm
- Repeat accuracy typical: 1 mm
- Update rate: 100 Hz
- Teach-in function available
- Reverse polarity and short-circuit protection
- Ambient operating temperature: -20 °C to +70 °C
- Shock and vibration resistance: 30 g, 11 ms / 10 Hz to 55 Hz, 1 mm
- Communication interface: Modbus RTU RS-485
- Housing material: Metal, aluminum, plastic
- Cable: PUR, 3 m length, 4-wire
- Dimensions (H x L x W): 30mm x 100mm x 50mm
- Weight: 0.3 kg
Key Features
- Typical detection range of 200 mm with operating height from 10 mm to 70 mm
- DC 4-wire electrical wiring with supply voltage from 9 V DC to 30 V DC
- Enclosure rated IP65, IP67, and IP68 for robust protection
- High resolution and repeat accuracy of 1 mm
- Update rate of 100 Hz with teach-in functionality
- Reverse polarity and short-circuit protection included
- Shock and vibration resistant up to 30 g
- Modbus RTU RS-485 communication interface
- Ambient operating temperature range from -20 °C to +70 °C
- Metal, aluminum, and plastic housing with PUR cable
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and configuration for Modbus communication and sensor operation.
Applications
- Industrial automation for object detection and positioning
- Robotics and machinery requiring precise orientation measurement
- Safety and monitoring systems in manufacturing environments
Standards & Compliance
- Complies with AS/NZS 61000 series for EMC standards
Environmental Benefits
- Durable IP65-IP68 rated housing reduces environmental damage and extends product life
- Low power consumption of 600 mW supports energy-efficient operation
- Robust design minimizes waste through long service life
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now

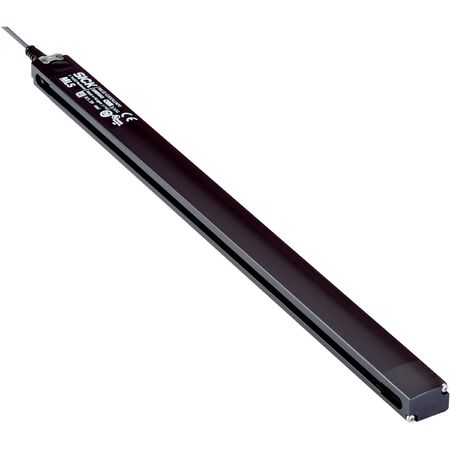

The SICK MLSE-0200C2NUA sensor is available for immediate purchase, ideal for industrial automation and precise detection applications.
