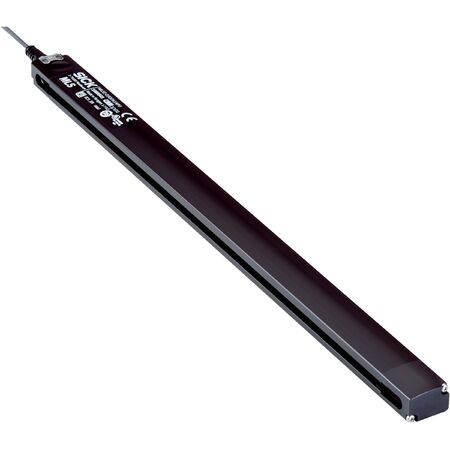

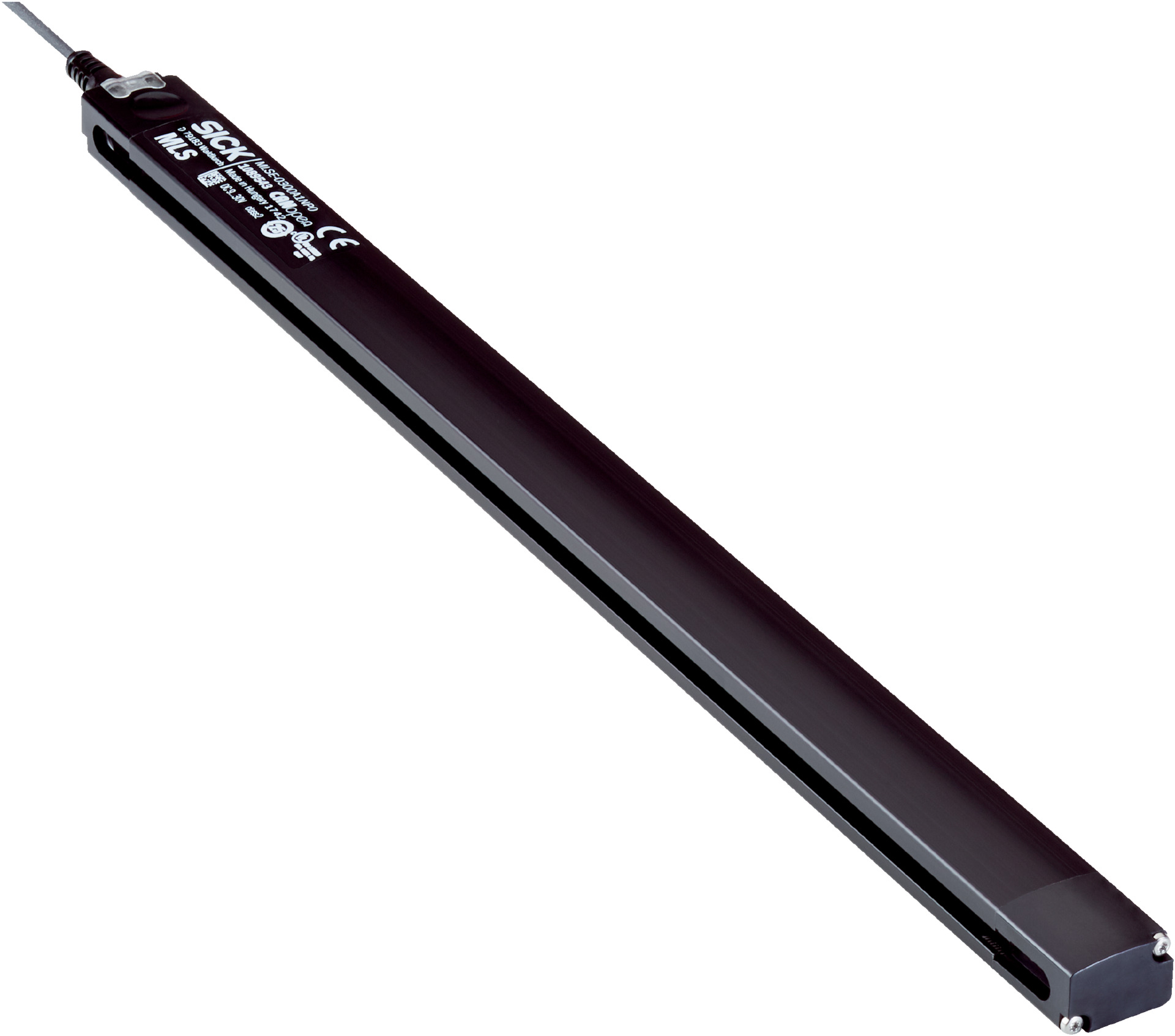

Modbus RTU Proximity Sensor | 400 mm Detection Range | IP65/IP67/IP68 Rated | by SICK
The Modbus RTU Proximity Sensor MLSE-0400C2NUA offers a detection range of 400 mm and operates effectively at heights from 10 mm to 70 mm. Designed for industrial automation, this sensor features robust IP65/IP67/IP68 enclosure ratings, ensuring durability in harsh environments. With a resolution of 1 mm and an update rate of 100 Hz, it’s perfect for precise object detection and safety monitoring in machinery.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Detection range typ.: 400 mm
- Operating height: 10 mm to 70 mm
- Electrical wiring: DC 4-wire
- Enclosure rating: IP65, IP67, IP68
- Supply voltage: 9 V DC to 30 V DC
- Power consumption: 600 mW
- Resolution: 1 mm
- Repeat accuracy: 1 mm
- Update rate: 100 Hz
- Teach-in function: Yes
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Shock and vibration resistance: 30 g, 11 ms/10 Hz to 55 Hz, 1 mm
- EMC: EN 61000-6-2, EN 61000-6-4
- Communication interface: Modbus RTU RS-485
- Ambient operating temperature: -20 °C to +70 °C
- Dimensions (H x L x W): 30mm x 100mm x 50mm
- Weight: 0.3 kg
Key Features
- Detection range typically 400 mm
- Operating height from 10 mm to 70 mm
- DC 4-wire electrical wiring
- Enclosure rating IP65, IP67, IP68 for robust protection
- Supply voltage from 9 V DC to 30 V DC
- Power consumption 600 mW
- Resolution and repeat accuracy typically 1 mm
- Update rate 100 Hz
- Teach-in function available
- Reverse polarity and short-circuit protection
- Shock and vibration resistance up to 30 g
- EMC compliant with EN 61000-6-2 and EN 61000-6-4
- Communication interface Modbus RTU RS-485
- Ambient operating temperature from -20 °C to +70 °C
Professional Installation Requirements
- Installation should be performed by a qualified technician familiar with Modbus RTU RS-485 communication and electrical wiring standards to ensure safety and optimal performance.
Applications
- Industrial automation for precise object detection
- Robotics for position and orientation sensing
- Manufacturing process control
- Safety monitoring in machinery
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption of 600 mW reduces energy usage
- Durable IP65-IP68 rated housing extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK MLSE-0400C2NUA sensor is available for immediate purchase, ideal for industrial automation and safety applications.
