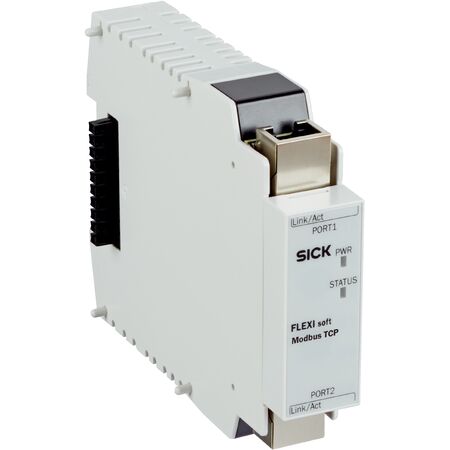

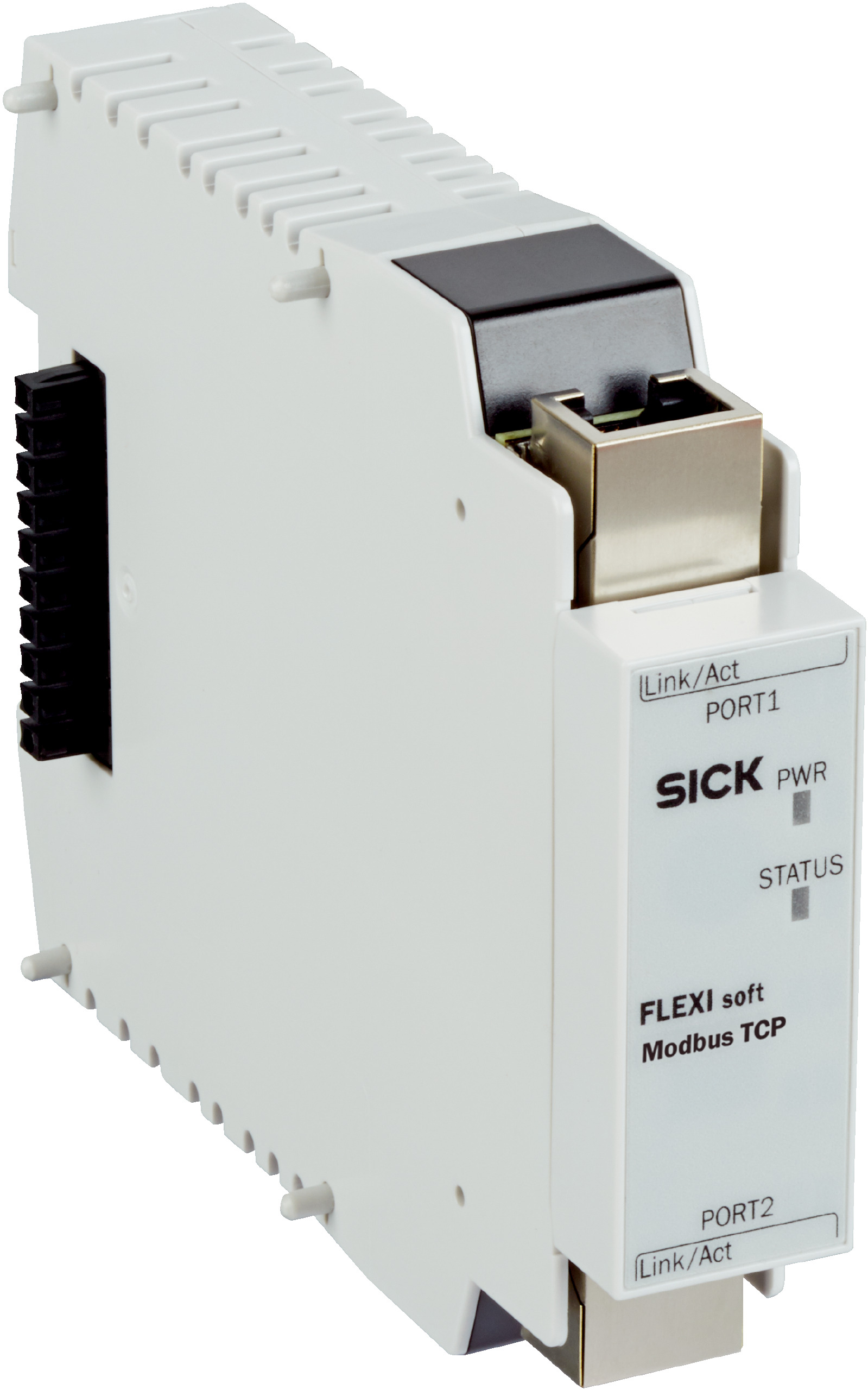

Modbus TCP Gateway Module FX0-GMOD00010 | Integrated 3-Port Switch | Protective Coating | by SICK
The Modbus TCP Gateway Module FX0-GMOD00010 is designed for seamless industrial network communication, featuring an integrated 3-port managed Ethernet switch and a protective coating for harsh environments. Ideal for automation systems, this module supports configuration via Flexi Soft Designer, ensuring reliable performance even in challenging conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Module Type: Gateway
- Fieldbus/Industrial Network: Modbus ® TCP, TCP/IP sockets
- Configuration Method: Software via Flexi Soft Designer, Safe EFI-pro System Safety Designer
- Integrated Ethernet Switch: 3-port layer-2 managed with Auto-MDI-X
- Data Transmission Rate: 10 Mbit/s (10Base-T), 100 Mbit/s (100Base-T) autosensing
- Connection Type: 2 x female RJ-45 connectors
- Protection Class: III (EN 61140)
- Voltage Supply: Via FLEXBUS+
- Internal Power Consumption: ≤ 3 W
- Enclosure Rating: IP20 (EN 60529)
- Operating Temperature Range: -25 °C to +55 °C
- Storage Temperature Range: -25 °C to +70 °C
- Humidity: ≤ 95%, Non-condensing
- Resistance to Sulfur Dioxide: 25 ppm for 21 days at 25 °C
- Resistance to Mixed Gases: H2S, NO2, Cl2, SO2 for 21 days at 30 °C
- Dimensions (H x L x W): 97mm x 121mm x 23mm
- Weight: 0.125 kg
Key Features
- Gateway module supporting Modbus ® TCP and TCP/IP sockets
- Configuration via Flexi Soft Designer and Safe EFI-pro System Safety Designer software
- Protective coating for resistance to sulfur and harsh ambient conditions
- Integrated 3-port layer-2 managed Ethernet switch with Auto-MDI-X
- Data transmission rates of 10 Mbit/s and 100 Mbit/s with autosensing
- Connection via 2 x female RJ-45 connectors
- Low internal power consumption ≤ 3 W
- Protection class III (EN 61140)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial network equipment and electrical safety standards.
Applications
- Industrial automation systems requiring network communication
- Integration in safety and control systems using Modbus TCP/IP
- Environments with challenging ambient conditions including sulfur exposure
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Protective coating extends product lifespan in corrosive environments, reducing waste
- Low power consumption contributes to energy efficiency in industrial systems
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK official documentation for details.
Available Now
The SICK FX0-GMOD00010 Gateway Module is available for immediate purchase, ideal for industrial automation and network communication applications.
