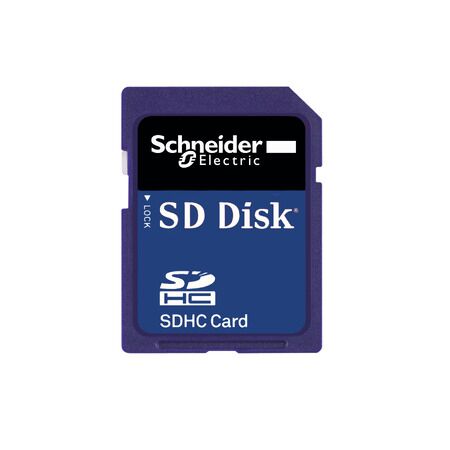

Modicon M221 Memory Card | 256MB Capacity | ESD & Vibration Resistant by Clipsal
Modicon M221 memory card with 256MB capacity and ESD resistance—ideal for industrial data storage and application transfer. Built for Modicon M221, M241, and M251 controllers, offering reliable performance and easy integration.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Modicon M221, Memory card, for M2xx controller
Brand: Clipsal
SKU: TMASD1
Alternatively Known As: Modicon Memory Card, M221 SD Card, Modicon M221 Backup Card
Technical Specifications
- Memory Type: Flash
- Data Retention Time: 10 years at 25 °C
- Number of Read/Write Cycles: 100,000
- MTBF Reliability: 3,000,000 hours
- Operating Temperature: -10 to 70 °C
- Storage Temperature: -25 to 85 °C
- Relative Humidity: 0 to 95% without condensation
- Electrostatic Discharge Resistance: 15 kV in air, 4 kV on contact
- Vibration Resistance: 1 gn
- Shock Resistance: 15 gn
- Dimensions (H x L x W): 1mm x 14.5mm x 12mm
- Weight: 0.027 kg
Key Features
- 256 MB capacity for data storage and application transfer.
- Compatible with Modicon M221, M241, and M251 controllers.
- Resistant to electrostatic discharge and vibration.
Professional Installation Requirements
- No professional installation required; user-friendly for direct application.
Applications
- Industrial: Used with Modicon M221 and M221 Book logic controllers for application backup and transfer.
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Complies with China RoHS regulations.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Modicon M221 Memory Card is available now for immediate purchase. Ideal for industrial applications requiring reliable data transfer and backup.
