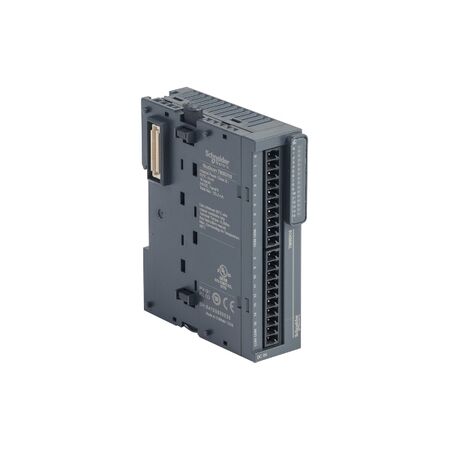

Modicon TM3 Analog Input Module 2 Channel Schneider

BRAND: Schneider
SKU: TM3AI2H
$381.20 List price: $422.70
+ −
30 Days Return Electricians Unlock Trade Access
This Modicon TM3 analog input module provides 2 high-resolution analog inputs at 24VDC for PLC signal expansion. It uses screw terminal connections, measuring 90mm x 60mm x 35mm and weighing 0.3kg. This compact form factor suits process control and monitoring applications where precise analog signal capture matters. Full specifications and wiring details are covered further down the page.
Technical Specifications
  • Type: Analog input module
  • Number of inputs: 2
  • Input resolution: High resolution
  • Connection type: Screw terminals
  • Operating voltage: 24 VDC
  • Dimensions (H x L x W): 90mm x 60mm x 35mm
  • Weight: 0.3 kg
Key Features
  • 2 high resolution analog inputs
  • Screw terminal connections
  • Operates at 24 VDC
Professional Installation Requirements
  • Installation should be performed by a qualified electrician or automation technician to ensure proper wiring and system integration.
Applications
  • Industrial automation systems
  • Process control and monitoring
  • PLC input expansion for analog signals
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Supports efficient industrial automation reducing energy waste
  • Durable design minimizes replacement frequency and electronic waste
Warranty Information

1 year warranty against manufacturing defects.

Available Now

This product available now for immediate purchase.


FAQ

Q: How many analog inputs does this module provide?

A: It provides 2 high-resolution analog inputs, operating at 24VDC.

Q: How does this module connect to the control panel?

A: It uses screw terminal connections, suited to PLC input expansion for analog signals.


Digital input expansion on the same Modicon platform can be added with an Advantys STB basic digital input kit for 16 additional points.

Higher input counts on the same Schneider system can be handled with a Modicon PLC 10V 4 channel analog input module.

Building automation zones on the same Schneider platform can be added with a C-Bus input board Schneider for input monitoring.

Order with confidence — SCHNAP offers a 30-day return policy on electrical products.
