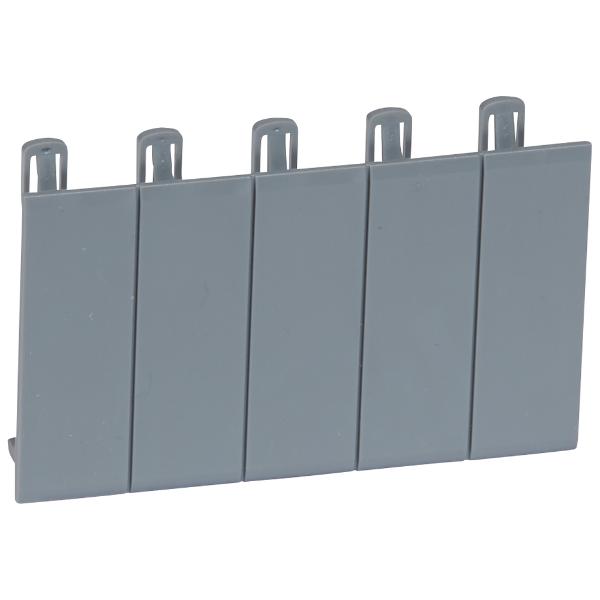

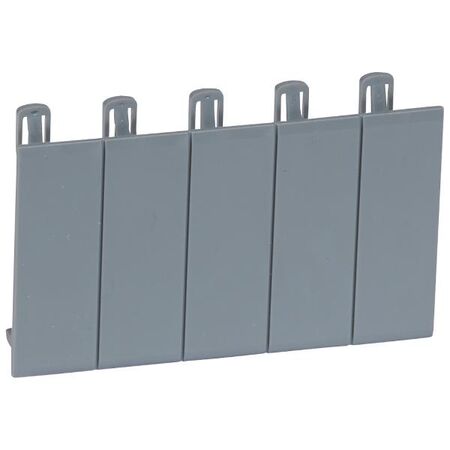

Modular Blanking Plates | 5 Separable Units | IP65 Rated | Grey by Legrand
Modular blanking plates with 5 separable units and IP65 rating—ideal for weatherproof cabinets and distribution boards. Built for durability, with shock-resistant polystyrene and self-extinguishing material.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Modular Blanking Plates | 5 Separable Units | IP65 Rated | Grey by Legrand
Brand: Legrand
SKU: 01961
Alternatively Known As: PLEXO3 blanking plates, modular blanking plates, distribution board blanking plates, enclosure blanking plates
Technical Specifications
- Material: Shock-resistant polystyrene
- Colour: Grey
- Resistance to incandescent wire: 650°C
- Protection rating: IP65
- Impact resistance: IK09
- Electrical class: Class II
- Compatible with IEC 61 439 - 3 assemblies
- Dimensions (H x L x W): 57mm x 193mm x 108mm
- Weight: 0.24 kg
Key Features
- 5 blanking plates separable into modules or 1/2 module
- Self-extinguishing with resistance to incandescent wire at 650°C
- Shock-resistant polystyrene material
- Lockable door handle, sealable cover and faceplate
- Can be fitted with perforated plates and solid faceplates for mounting non-modular products
- IP65 rated for dust and water protection
- IK09 rated for impact resistance
- Class II electrical insulation
Professional Installation Requirements
- Installation by a qualified professional is recommended to ensure compliance with electrical safety standards and proper assembly.
Applications
- Weatherproof cabinets
- Distribution boards and enclosures
- Distribution cabinets and consumer units
Standards & Compliance
- Complies with AS/NZS 61439 for low-voltage switchgear and control gear assemblies (equivalent to IEC 61439)
Environmental Benefits
- Self-extinguishing material enhances safety and reduces fire risk
- Durable and shock-resistant materials extend product lifespan, reducing waste
Warranty Information
1 Year Warranty
Available Now
The Legrand PLEXO3 accessory blanking plates are available now for immediate purchase. Ideal for use in weatherproof distribution cabinets and consumer units.
