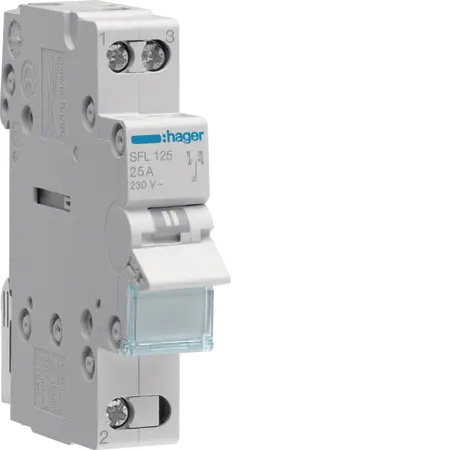

Modular Changeover Switch 1-Pole 25A | Bottom Common Point | Compact Design by Hager
1-pole, 25A modular changeover switch with bottom common point—ideal for residential and commercial electrical circuits. Built for space efficiency with a compact design and high IP20 protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 1-pole, 25A Modular Changeover Switch with Bottom Common Point
Brand: Hager
SKU: SFL125
Alternatively Known As: Modular Changeover Switch
Technical Specifications
- Number of poles: 1
- Rated current: 25 A
- Breaking capacity 400 V AC23A: 529 A
- Rated operational voltage Ue: 230 - 230 V
- Rated insulation voltage Ui: 440 V
- Rated impulse withstand voltage Uimp: 4000 V
- Ingress Protection (IP) class: IP20
- Frequency: 50 - 60 Hz
- Nominal tightening torque: 1.80 Nm
- Type of bottom connection: Screw terminal
- Cross-section flexible conductor: 1.5 - 10 mm²
- Cross-section rigid conductor: 1.5 - 16 mm²
- Total power loss under IN: 0.90 W
- Rated short-circuit making capacity: 0.52 kA
- Rated short-time withstand current: 0.37 kA
- Dimensions (H x L x W): 83mm x 68mm x 17.50mm
- Weight: 0.2 kg
Key Features
- Compact design with a single module width for space efficiency.
- Robust construction ensuring a high mechanical operation count of 200,000 cycles.
- Rated operational voltage range of 230V, allowing for versatile use across different applications.
- High protection class of IP20, suitable for indoor installations.
Professional Installation Requirements
- Professional installation by a licensed electrician is required to ensure safe and optimal operation.
Applications
- Residential electrical circuits
- Commercial electrical installations
- Industrial power management
Standards & Compliance
- Complies with IEC 60947-3 for switchgear and controlgear applications.
Environmental Benefits
- Designed for reduced power loss, improving energy efficiency.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The 1-Pole, 25A Hager Modular Changeover Switch with a Bottom Common Point is available for immediate purchase, ideal for both commercial and residential electrical setups.
