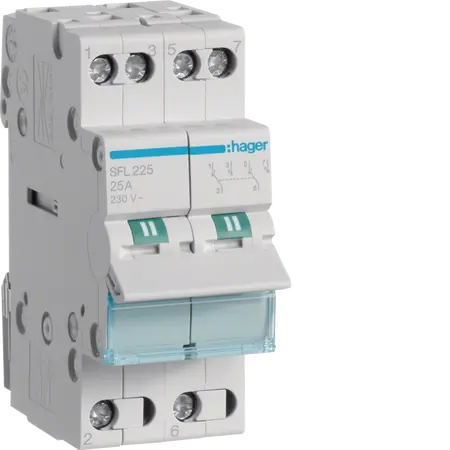

Modular Changeover Switch 2-Pole 25A | Compact 2-Module | Bottom Common Point by Hager

BRAND: :hager
SKU: SFL225
$69.40 List price: $88.80
+
Modular changeover switch with 2-pole configuration and 25A rated current—ideal for industrial and commercial electrical systems. Built for reliability, with a compact 2-module design and bottom common point for efficient installation.

Product Name/Title: 2-pole, 25A Modular Changeover Switch with Bottom Common Point

Brand: Hager

SKU: SFL225

Alternatively Known As: Changeover Switch SFL225

Technical Specifications
  • Number of Poles: 2
  • Rated Current: 25 A
  • Rated Operational Voltage Ue: 230 - 230 V
  • Breaking Capacity 400 V AC23A: 529 A
  • Rated conditional short-circuit current Icc: 0.37 kA
  • Rated Impulse Withstand Voltage Uimp: 4000 V
  • Ingress Protection (IP) class: IP20
  • Frequency: 50 - 60 Hz
  • Operating Temperature: -20 to 50 °C
  • Storage/Transport Temperature: -40 to 80 °C
  • Number of mechanical operations: 200000
  • Electrical durability at nominal load in AC21: 25000 operations
  • Total Power Loss under In: 1.80 W
  • Dimensions (H x L x W): 83mm x 68mm x 35mm
  • Weight: 0.4 kg
Key Features
  • 2-pole configuration for reliable changeover
  • Rated current up to 25A
  • Compact 2-module width design
Professional Installation Requirements
  • Professional installation is recommended to ensure safety and compliance with regional electrical standards.
Applications
  • Industrial: Switchgear systems
  • Commercial: Electrical panels and distribution boards
  • General: Use in electrical systems requiring modular switches
Standards & Compliance
  • Complies with IEC 60947 standards for low-voltage switchgear and control gear.
Environmental Benefits
  • Durable design reduces the need for early replacements, minimizing waste.
Warranty Information

2 years warranty against manufacturing defects.

Available Now

Available for immediate purchase, ideal for industrial and commercial electrical installations.

SFL225 (SFL225, 152 Kb) [Download]

reach_declaration_SFL2253.pdf (reach_declaration_SFL2253.pdf, 103 Kb) [Download]

rohs_declaration_SFL2253.pdf (rohs_declaration_SFL2253.pdf, 104 Kb) [Download]

(NETHERLANDS_LICENCE_71_125608.pdf, 2,593 Kb) [Download]

(DECLARATION_25_1516_02_25.pdf, 991 Kb) [Download]
