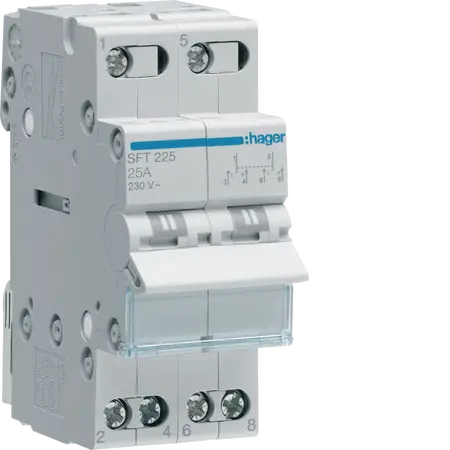

Modular Changeover Switch 2-Pole 25A | Top Common Point | Compact Design by Hager

BRAND: :hager
SKU: SFT225
$69.80 List price: $89.30
+ −
30 Days Return Delivery Options
Modular changeover switch with 2-pole, 25A capacity and top common point—ideal for residential, commercial, and industrial electrical systems. Built for reliable circuit management, with compact design for easy integration.

Product Name/Title: 2-pole, 25A Centre Off Modular Changeover Switch with Top Common Point

Brand: Hager

SKU: SFT225

Alternatively Known As: Modular Changeover Switch

Technical Specifications
  • Number of poles: 2
  • Neutral position: Without neutral
  • Type of pole: 2P
  • Rated current: 25 A
  • Breaking capacity 400 V AC23A: 529 A
  • Rated conditional short-circuit current Icc with gl-gG fuses: 0.37 kA
  • Acceptable current rating AC21 category A: 25 A
  • Acceptable current rating AC21 category B: 25 A
  • Acceptable current rating AC22 category A: 25 A
  • Acceptable current rating AC22 category B: 25 A
  • Rated short-circuit making capacity Icm under 240 V AC according to IEC 60947-3: 0.52 kA
  • Rated short-time withstand current Icw 1s IEC 60947: 0.37 kA
  • Nominal tightening torque: 1.80 - 1.80 Nm
  • Type of bottom connection for modular devices: Screw terminal
  • Rated operational voltage Ue: 230 - 230 V
  • Type voltage supply: AC
  • Rated insulation voltage Ui: 440 V
  • Rated impulse withstand voltage Uimp: 4000 V
  • Number of modules: 2
  • Ingress Protection (IP) class: IP20
  • Frequency: 50 - 60 Hz
  • Height: 83 mm
  • Width: 35 mm
  • Depth: 70 mm
  • Number of NO contacts: 0
  • Number of NC contacts: 0
  • Operating temperature: -20 - 50 °C
  • Storage/transport temperature: -40 - 80 °C
  • Cross-section flexible conductor: 1.5 - 10 mm²
  • Cross-section rigid conductor: 1.5 - 16 mm²
  • Number of mechanical operations: 200000
  • Electrical durability at nominal load in AC21 in operating cycles: 25000
  • Electrical durability at nominal load in AC22 in operating cycles: 25000
  • Total power loss under IN: 1.80 W
  • Power loss per pole at In: 0.90 W
  • Down connection alignment for modular devices: Shifted terminal
  • Top connection alignment for modular devices: Shifted terminal
  • Dimensions (H x L x W): 83mm x 35mm x 70mm
  • Weight: 0.2 kg
Key Features
  • Durable construction suitable for various electrical installations
  • Compact design with top common point for easy integration
  • Reliable performance at rated current of 25A
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended to ensure safety and compliance with standards.
Applications
  • Suitable for residential, commercial, and industrial electrical systems requiring a changeover switch.
Standards & Compliance
  • Compliant with IEC 60947-3 standards for electrical switchgear and controlgear.
Environmental Benefits
  • Long-lasting design reduces need for replacements, minimizing waste
Warranty Information

1 year warranty against manufacturing defects.

Available Now

Available for immediate purchase, ideal for electrical systems requiring reliable circuit management.

SFT225 (SFT225, 150 Kb) [Download]

reach_declaration_SFT2253.pdf (reach_declaration_SFT2253.pdf, 103 Kb) [Download]

rohs_declaration_SFT2253.pdf (rohs_declaration_SFT2253.pdf, 104 Kb) [Download]

(CHANGEOVERSWITCH.pdf, 56 Kb) [Download]

(NETHERLANDS_LICENCE_71_125608.pdf, 2,593 Kb) [Download]

(DECLARATION_25_1516_02_25.pdf, 991 Kb) [Download]
