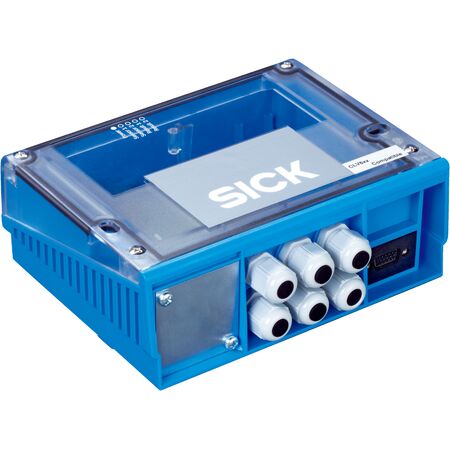

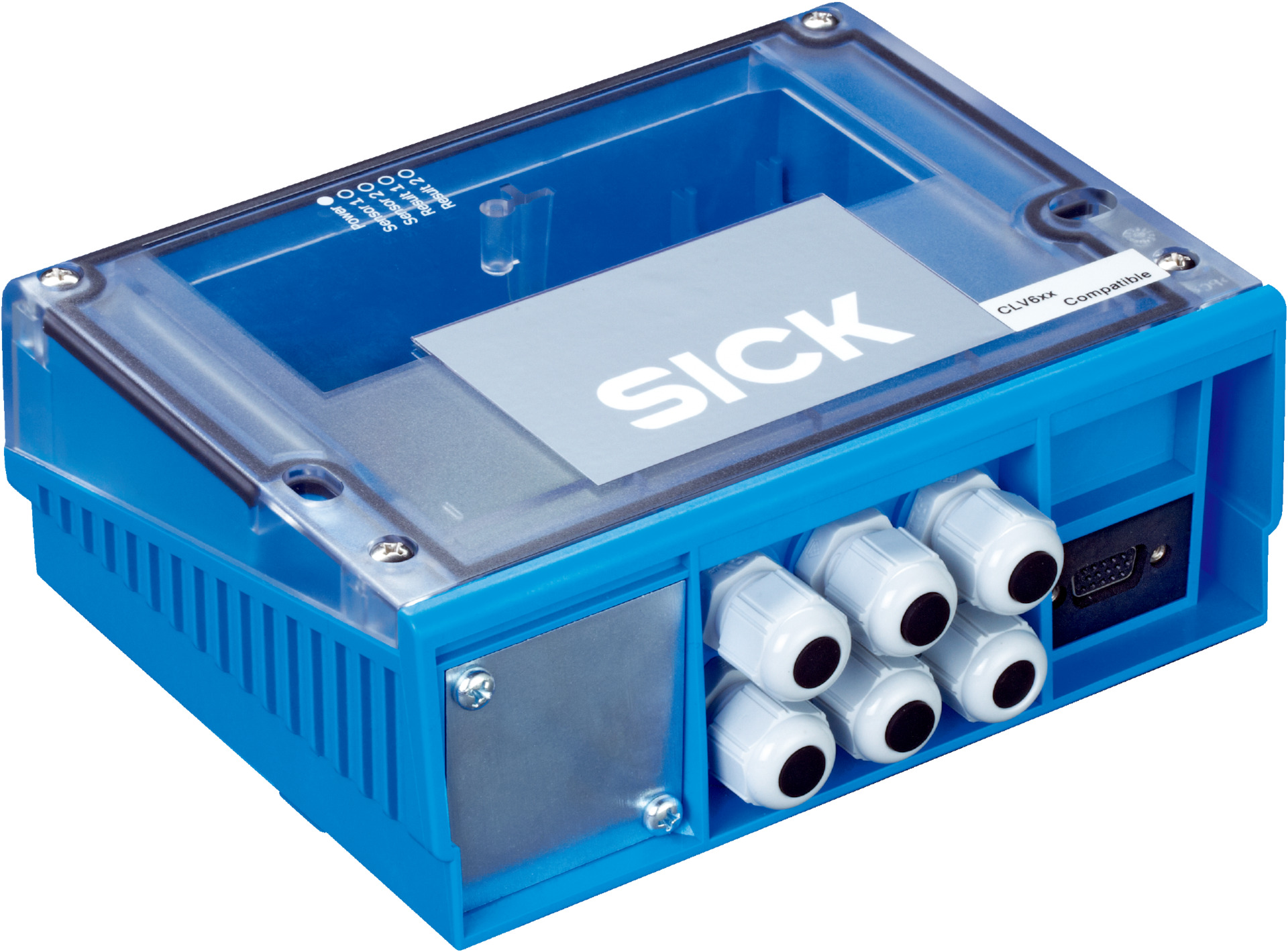

Modular Connection Module CDM420-0001 | IP65 Rated | Multiple Interface Support | by SICK
The Modular Connection Module CDM420-0001 is designed for seamless industrial automation sensor integration, featuring a durable IP65-rated polycarbonate housing and support for multiple interfaces including Ethernet and PROFIBUS DP. Ideal for connecting various sensors and scanners, this module ensures reliable performance in demanding environments, making it perfect for professionals in automation and manufacturing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Modular Connection Module CDM420-0001 | IP65 Rated | Multiple Interface Support | by SICK
Brand: SICK
SKU: 1025362
Alternatively Known As: Sensor Connection Module, Modular Sensor Interface, SICK CDM420 Module
Technical Specifications
- Power consumption: Sensor power consumption + 0.5 W
- Housing: Polycarbonate
- Enclosure rating: IP65
- Protection class: III
- Scanner connection: 15-pin D-Sub HD female connector
- Service plug: 9-pin D-Sub plug (internal)
- Interfaces: Ethernet, RS-232, TCP/IP, RS-485, Serial (RS-232, RS-422, RS-485), CAN, PROFIBUS DP, DeviceNet™
- Optical indicators: 5 LEDs
- Configuration software: SOPAS ET
- Ambient operating temperature: -35 °C to +40 °C
- Storage temperature: -35 °C to +70 °C
- Permissible relative humidity: < 90%, non-condensing
- Dimensions (H x L x W): 70mm x 192mm x 167mm
- Weight: 0.8 kg
Key Features
- Modular connection module for one sensor
- Supports cloning module (CMC), display module (CMD), power supply module (CMP), and fieldbus gateway (CMF)
- Compatible with PROFIBUS DP, Ethernet, DeviceNet™ fieldbus systems
- Housing made of durable polycarbonate with IP65 enclosure rating
- Multiple interface support including Ethernet, RS-232, RS-422, RS-485, CAN
- 5 LED optical indicators for status display
- Configuration via SOPAS ET software
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with industrial sensor systems and electrical standards to ensure proper integration and safety.
Applications
- Industrial automation sensor integration
- Connection module for Lector62x, CLV61x - CLV65x scanners
- Mobile handheld scanners and RF devices connectivity
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Low power consumption with only 0.5 W additional power usage
- Durable polycarbonate housing ensures long product life and reduces waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK CDM420-0001 Modular Connection Module is available for immediate purchase, ideal for industrial automation and sensor integration applications.
