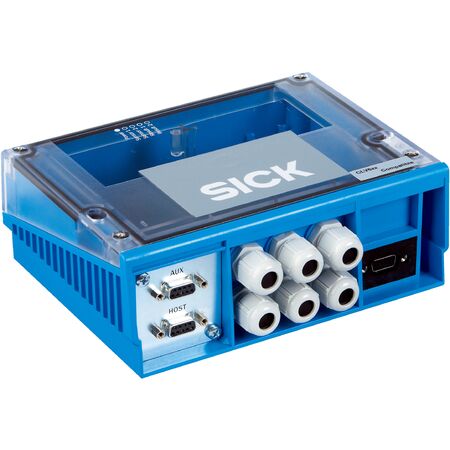

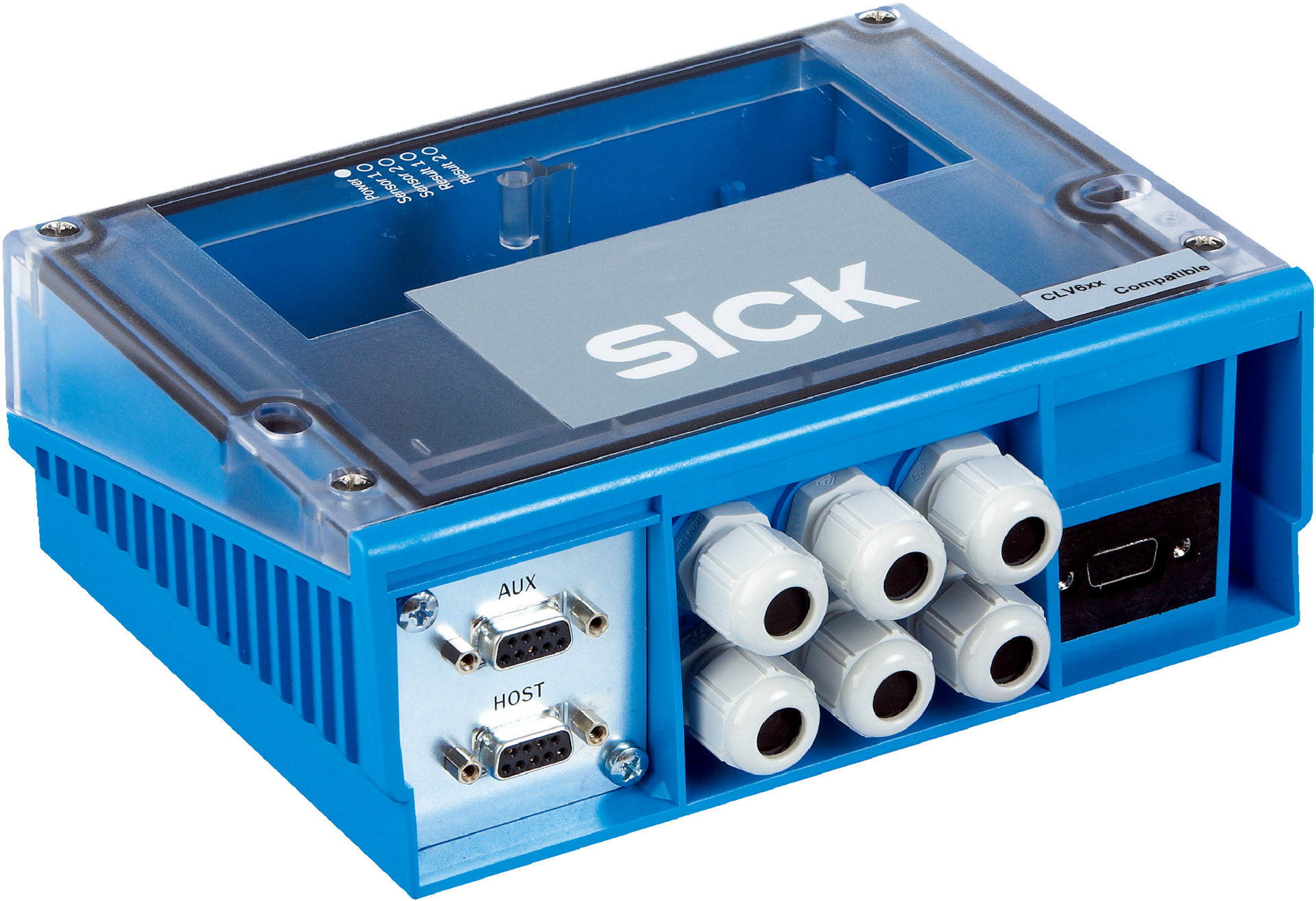

Modular Connection Module CDM420-0101 | IP65 Rated | 15-Pin D-Sub Connector | by SICK
The Modular Connection Module CDM420-0101 is designed for seamless integration of sensors in industrial automation. With an IP65 rated polycarbonate housing, it ensures robust protection and supports multiple serial interfaces including RS-232, RS-422, and RS-485. Ideal for Lector series sensor connections, this module enhances system flexibility and reliability in manufacturing environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Modular Connection Module CDM420-0101 | IP65 Rated | 15-Pin D-Sub Connector | by SICK
Brand: SICK
SKU: 1025364
Alternatively Known As: SICK CDM420 connection module, Lector sensor interface module, SICK modular sensor connector
Technical Specifications
- Power consumption: Sensor power consumption + 0.5 W
- Housing material: Polycarbonate
- Enclosure rating: IP65
- Protection class: III
- Scanner connection: 15-pin D-Sub HD female connector
- Service plug: 9-pin D-Sub plug (internal)
- Interfaces: Serial (RS-232, RS-422, RS-485), CAN (depending on sensor)
- Optical indicators: 5 LEDs
- Configuration software: SOPAS ET
- Operating temperature range: -35 °C to +40 °C
- Storage temperature range: -35 °C to +70 °C
- Permissible relative humidity: < 90%, non-condensing
- Dimensions (H x L x W): 70mm x 192mm x 167mm
- Weight: 0.8 kg
Key Features
- Modular connection module for one sensor with Host and AUX interface on face plate
- Supports cloning module (CMC), display module (CMD), and power supply module (CMP)
- IP65 rated polycarbonate housing for robust protection
- Multiple serial interfaces supported: RS-232, RS-422, RS-485 depending on sensor
- CAN interface support depending on sensor connected
- 5 LED optical indicators for status display
- Configuration via SOPAS ET software
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor systems and electrical safety standards.
Applications
- Industrial automation sensor integration
- Connection module for Lector series CLV61x - CLV65x sensors
- Modular system expansions in manufacturing and processing plants
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable polycarbonate housing extends product life reducing waste
- Low power consumption with only 0.5 W additional power usage
- Supports modular upgrades reducing need for full system replacements
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK CDM420-0101 Modular Connection Module is available for immediate purchase, ideal for industrial automation and sensor integration applications.
