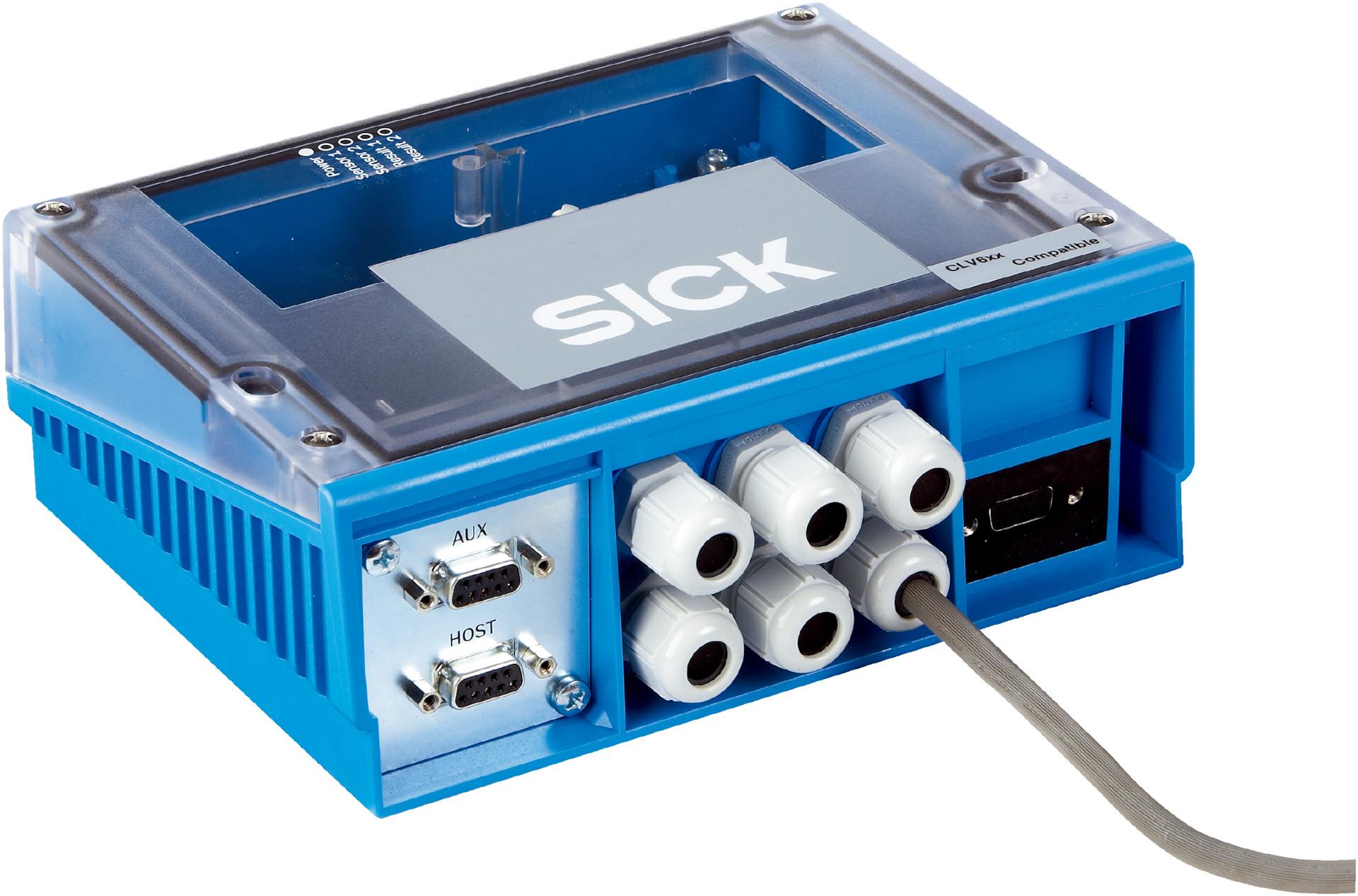

Modular Connection Module CDM420-0102 | IP65 Enclosure | 5 LED Indicators | by SICK
The Modular Connection Module CDM420-0102 is designed for seamless sensor integration in industrial automation. With an IP65 enclosure for dust and water protection, this module features a 15-pin D-Sub HD female connector and 5 LED optical indicators for status monitoring. Ideal for connecting Lector series sensors, it ensures reliable performance and easy configuration via SOPAS ET software.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Modular Connection Module CDM420-0102 | IP65 Enclosure | 5 LED Indicators | by SICK
Brand: SICK
SKU: 1026220
Alternatively Known As: SICK Modular Connection Module, CDM420 Sensor Interface Kit, Lector Sensor Connection Module
Technical Specifications
- Power consumption: Sensor power consumption + 0.5 W
- Housing material: Polycarbonate
- Enclosure rating: IP65
- Protection class: III
- Scanner connection: 15-pin D-Sub HD female connector
- Service plug: 9-pin D-Sub plug (internal)
- Interfaces: Serial (RS-232, RS-422, RS-485), CAN (depending on sensor connected)
- Optical indicators: 5 LEDs
- Configuration software: SOPAS ET
- Operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- Permissible relative humidity: < 90%, non-condensing
- Dimensions (H x L x W): 70mm x 192mm x 167mm
- Weight: 0.8 kg
Key Features
- Modular connection module for one sensor
- Host and AUX interface available on front plate
- Includes CMP400 power supply and US power cord
- Supports cloning module (CMC), display module (CMD), and power supply module (CMP)
- Scanner connection via 15-pin D-Sub HD female connector
- 5 LED optical indicators for status
- Configuration via SOPAS ET software
- Enclosure rated IP65 for dust and water protection
- Polycarbonate housing with protection class III
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper integration and compliance with electrical standards.
Applications
- Industrial automation sensor integration
- Modular connection for Lector series CLV61x - CLV65x RFH6xx sensors
- Host and auxiliary interface connectivity in automation systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Durable polycarbonate housing extends product lifespan reducing waste
- Low power consumption with sensor power plus 0.5 W additional usage
- IP65 rating ensures protection against dust and water, reducing maintenance and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK CDM420-0102 Modular Connection Module Kit is available for immediate purchase, ideal for industrial automation and sensor integration applications.
