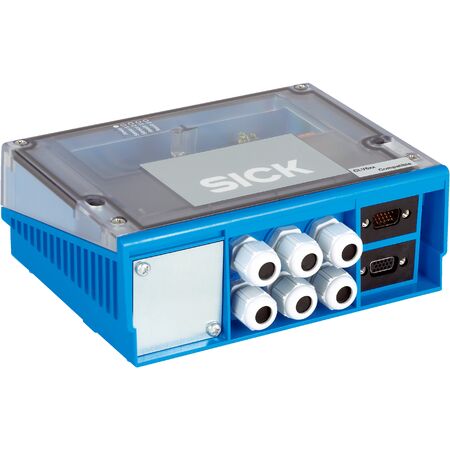

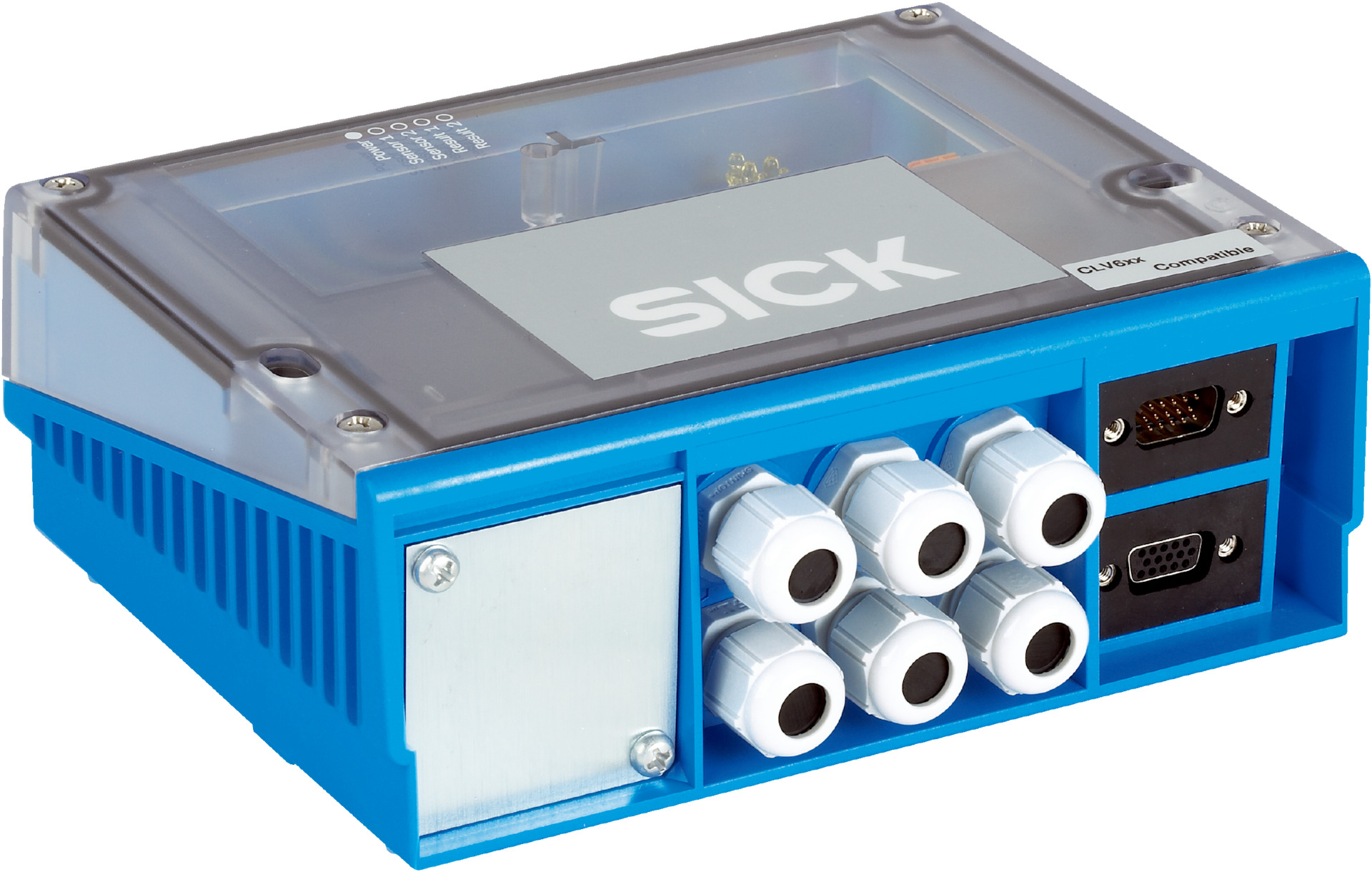

Modular Connection Module CDM490-0001 | IP65 Rated | Multiple Interface Options | by SICK
The Modular Connection Module CDM490-0001 is designed for seamless sensor connectivity in industrial automation. With robust IP65-rated polycarbonate housing and support for multiple interfaces including Ethernet and PROFIBUS DP, it simplifies integration with various sensor products. Ideal for manufacturing environments, this module enhances system efficiency and reduces complexity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Modular Connection Module CDM490-0001 | IP65 Rated | Multiple Interface Options | by SICK
Brand: SICK
SKU: 1025363
Alternatively Known As: Sensor Connection Module, Modular Sensor Interface, CDM490 Connection Unit
Technical Specifications
- Power consumption: Sensor power consumption + 0.5 W
- Housing material: Polycarbonate
- Enclosure rating: IP65
- Protection class: III
- Scanner connection: 15-pin D-Sub HD female and male connectors
- Service plug: 9-pin D-Sub plug (internal)
- Interfaces: Ethernet, RS-232, RS-422, RS-485, CAN, PROFIBUS DP, DeviceNet™
- Optical indicators: 11 LEDs
- Ambient operating temperature: -35 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- Permissible relative humidity: < 90%, non-condensing
- Configuration software: SOPAS ET
- Dimensions (H x L x W): 70mm x 192mm x 167mm
- Weight: 0.87 kg
Key Features
- Modular connection module designed for one sensor
- Supports cloning module (CMC), display module (CMD), power supply module (CMP), and fieldbus gateway (CMF)
- Compatible with PROFIBUS DP, Ethernet, and DeviceNet™ fieldbus systems
- Robust polycarbonate housing with IP65 enclosure rating
- Multiple interface options including Ethernet, RS-232, RS-422, RS-485, CAN
- 11 LED optical indicators for status monitoring
- Configuration via SOPAS ET software
Professional Installation Requirements
- Installation should be performed by a qualified technician familiar with industrial sensor systems and electrical standards.
Applications
- Industrial automation sensor connectivity
- Integration with CLV69x and LMS400 sensor products
- Fieldbus communication in manufacturing environments
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Durable polycarbonate housing extends product lifespan reducing waste
- Supports efficient sensor integration reducing system complexity and energy use
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK CDM490-0001 Modular Connection Module is available for immediate purchase, ideal for industrial automation and sensor integration applications.
