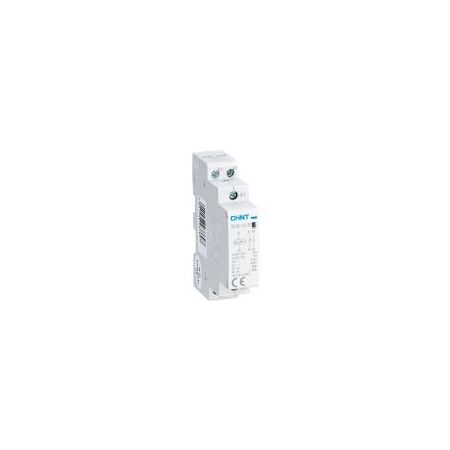

Modular Contactor 25A 2NC 220/230V Coil NCH8 Chint

BRAND: CABAC
SKU: 256239
$68.70 List price: $91.60
+ −
30 Days Return Electricians Unlock Trade Access
Chint NCH8 modular contactor features 25A rating, 2NC contacts, 220/230V AC coil, DIN rail mount. Ideal for lighting and heating loads.

Alternatively Known As: CHINT NCH8 25A 2NC Contactor, DIN Rail Contactor, Modular Installation Contactor

Technical Specifications
  • Model: NCH8-25/02 220/230 V
  • Rated Operational Current: 25 A
  • Contact Configuration: 2 normally closed contacts
  • Coil Voltage: 220/230 V AC, 50/60 Hz
  • Rated Operational Voltage: 230 V AC
  • Rated Insulation Voltage: 500 V
  • Rated Impulse Withstand Voltage: 4 kV
  • Utilisation Categories: AC-1, AC-7a and AC-7b with derating where applicable
  • Protection Rating: IP20
  • Mounting: 35 mm TH35 DIN rail or screw mounting
  • Terminals: Screw terminals
  • Ambient Temperature: -5 °C to +40 °C
  • Dimensions (H x L x W): 85mm x 66.5mm x 18mm
  • Weight: 0.1 kg
Key Features
  • Compact modular design for distribution boards and control panels
  • Two normally closed power contacts
  • 220/230 V AC operating coil suitable for Australian nominal supply systems
  • DIN rail mounting for straightforward panel installation
  • Suitable for lighting, heating, ventilation and household automation circuits
  • Silent operation during normal switching
  • Mechanical service life rated up to 3 million operations
Professional Installation Requirements
  • Installation and maintenance must be performed by a licensed electrician or suitably qualified professional with the supply isolated. Select appropriate short-circuit protection and install in accordance with AS/NZS 3000 and the manufacturer's instructions.
Applications
  • Lighting control circuits
  • Electric heating loads
  • Ventilation and HVAC control systems
  • Household automation and building management systems
  • Residential, commercial and light industrial control panels
Standards & Compliance
  • AS/NZS 3000: Wiring Rules apply to the fixed electrical installation and connection of this 220/230 V device.
  • AS/NZS IEC 60947.4.1:2015 is the applicable Australian/New Zealand standard for electromechanical contactors; verify product approval and RCM status for the intended installation.
Environmental Benefits
  • Enables automatic switching and scheduling of lighting, heating and ventilation loads, which can help reduce unnecessary energy consumption.
  • Compact construction and long mechanical service life can reduce replacement frequency and associated material waste.
  • Metallic electrical components can be recovered through appropriate electrical equipment recycling streams at end of life.
Warranty Information

CHINT's published general policy provides a 27-month warranty from the date of manufacture for other low-voltage apparatus sold through authorised channels, subject to the applicable contract and exclusions for improper installation, misuse or unauthorised modification.

Available Now

Available through authorised CHINT distributors in Australia.
