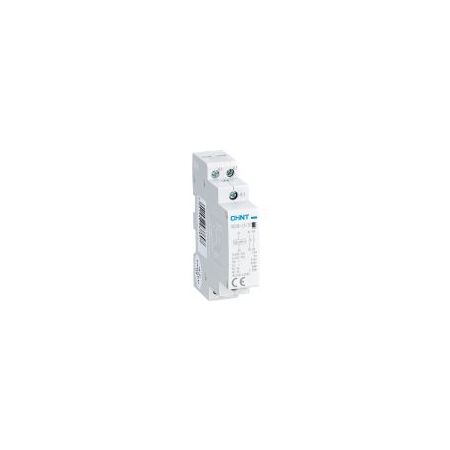

Modular Contactor 25A 2NC 240V Coil NCH8 Chint

BRAND: CABAC
SKU: 266873
$55.00 List price: $73.30
+ −
30 Days Return Electricians Unlock Trade Access
Chint NCH8 modular contactor features 25A rating, 2NC contacts, 240V AC coil, DIN rail mount. Ideal for lighting and heating loads.

Alternatively Known As: NCH8-25/02 240V AC Contactor, DIN Rail Contactor, Modular Lighting Contactor

Technical Specifications
  • Model: NCH8-25/02 240V
  • Rated Operational Current: 25A AC-1/AC-7a
  • Contact Configuration: 2 normally closed contacts
  • Coil Voltage: 240V AC, 50/60Hz
  • Rated Operational Voltage: 230V AC
  • Utilisation Categories: AC-1, AC-7a, AC-7b and AC-3
  • Rated Insulation Voltage: 500V
  • Protection Rating: IP20
  • Mounting: 35mm DIN rail or screw fixing
  • Operating Temperature: -5°C to +40°C
  • Controlled Motor Power: Up to 5kW under specified AC-3 conditions
  • Electrical Life: Up to 30,000 operations depending on utilisation category
  • Dimensions (H x L x W): 66.5mm x 85mm x 36mm
  • Weight: 0.2 kg
Key Features
  • Compact modular design for distribution boards and control panels
  • Two normally closed main contacts
  • 240V AC control coil suitable for Australian control circuits
  • DIN rail mounting with optional screw fixing
  • Silent operation for residential and commercial environments
  • Suitable for lighting, heating, small motors and general AC load switching
  • Insulating housing designed to improve operational safety
Professional Installation Requirements
  • Installation and connection to mains or control wiring should be performed by a licensed electrician in accordance with AS/NZS 3000 and the manufacturer's instructions.
Applications
  • Lighting control circuits
  • Electric heating control
  • Residential and commercial distribution boards
  • Small AC motor switching
  • Building automation and general load control
  • Industrial control panels
Standards & Compliance
  • Applicable product standard: AS/NZS IEC 60947.4.1 for electromechanical contactors and motor-starters
  • Manufacturer states compliance with IEC/EN 61095 and IEC 60947-4-1
  • Electrical installation should comply with AS/NZS 3000 Wiring Rules
Environmental Benefits
  • Durable modular construction can reduce replacement frequency and product waste
  • Metal electrical contacts and terminals are recyclable at end of service life
  • Low-power contactor control supports efficient switching of lighting and heating loads
  • Compact DIN rail format reduces enclosure space and material requirements
Warranty Information

CHINT warranty policy provides 27 months from the date of manufacture for other low-voltage apparatus sold through authorised channels, subject to the applicable sales contract and warranty conditions.

Available Now

Available through authorised CHINT distributors in Australia.
