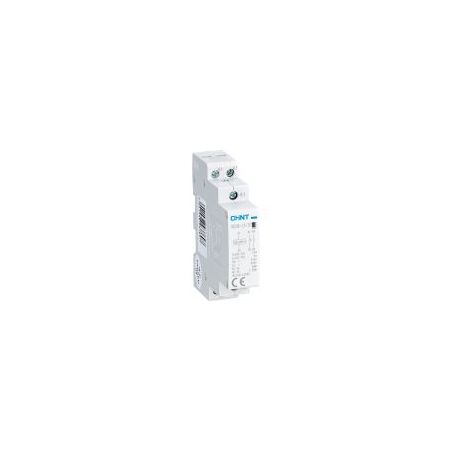

Modular Contactor 25A 2NC 24V Coil NCH8 Chint

BRAND: CABAC
SKU: 256240
$68.70 List price: $91.60
+ −
30 Days Return Electricians Unlock Trade Access
Chint NCH8 modular contactor features 25A rating, 2NC contacts, 24V AC coil, DIN rail mount. Ideal for lighting and heating loads.

Alternatively Known As: NCH8-25/02 24V AC Contactor, 2-Pole Modular Contactor, DIN Rail Contactor

Technical Specifications
  • Model: NCH8-25/02 24V
  • Rated Current: 25 A
  • Contact Configuration: 2 normally closed contacts
  • Number of Poles: 2P
  • Coil Voltage: 24 V AC, 50/60 Hz
  • Rated Operational Voltage: 230/400 V AC, 50/60 Hz
  • Rated Insulation Voltage: 500 V
  • Utilisation Categories: AC-1, AC-3, AC-7a and AC-7b
  • Protection Rating: IP20
  • Mounting: 35 mm DIN rail or screw mounting
  • Terminal Type: Screw terminals
  • Ambient Operating Temperature: -5 °C to +40 °C
  • Mechanical Life: Up to 3 million operations
  • Electrical Life: At least 100,000 operations
  • Dimensions (H x L x W): 85mm x 66.5mm x 18mm
  • Weight: 0.15 kg
Key Features
  • 25 A switching capacity for suitable AC loads
  • Two normally closed power contacts
  • 24 V AC control coil
  • Compact 2-pole modular format
  • Suitable for DIN rail installation in control panels and distribution boards
  • Silent operation for residential and commercial applications
  • Suitable for lighting, heating, ventilation and automation circuits
Professional Installation Requirements
  • Installation and connection should be carried out by a licensed electrician in accordance with AS/NZS 3000, the manufacturer's instructions and applicable local electrical regulations.
Applications
  • Lighting control circuits
  • Electric heating loads
  • HVAC and ventilation control
  • Residential and commercial automation systems
  • Distribution boards and electrical control panels
Standards & Compliance
  • Designed to IEC/EN 61095 requirements for domestic and similar-use contactors
  • Designed to IEC 60947-4-1 requirements for electromechanical contactors and motor-starters
  • AS/NZS IEC 60947.4.1:2015 is the applicable Australian/New Zealand standard for electromechanical contactors
  • Electrical equipment should also satisfy AS/NZS 3820 essential safety requirements where applicable
Environmental Benefits
  • Supports automated switching and energy management of lighting and heating loads
  • Long mechanical service life can reduce replacement frequency and product waste
  • Compact modular design reduces installation space and material use
  • Metal and thermoplastic components can be separated for recycling at end of life where local facilities permit
Warranty Information

CHINT general warranty policy provides 27 months from the date of manufacture for other low-voltage apparatus sold through authorised channels, subject to the applicable sales contract and warranty conditions.

Available Now

Available through authorised CHINT distributors in Australia.
