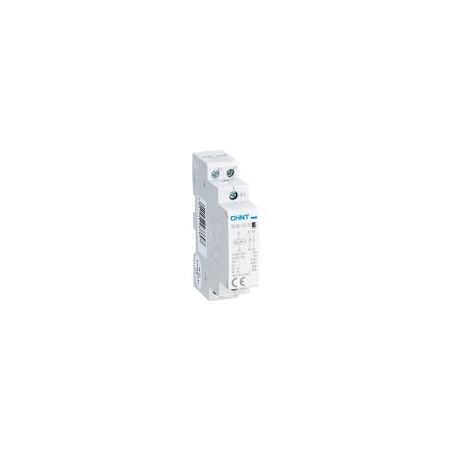

Modular Contactor 25A 2NO 110V Coil NCH8 Chint

BRAND: CABAC
SKU: 258927
$68.70 List price: $91.60
+ −
30 Days Return Electricians Unlock Trade Access
Chint NCH8 modular contactor features 25A rating, 2NO contacts, 110V AC coil, DIN rail mount. Ideal for lighting and heating loads.

Alternatively Known As: Modular AC Contactor, DIN Rail Contactor, Lighting Contactor, Heating Contactor

Technical Specifications
  • Series: NCH8
  • Model: NCH8-25/20 110V
  • Rated Current: 25A
  • Contact Configuration: 2NO
  • Coil Voltage: 110V AC
  • Rated Operational Voltage: 230/400V AC, 50/60Hz
  • Utilisation Categories: AC-1, AC-3, AC-7a and AC-7b
  • Rated Insulation Voltage: 500V
  • Coil Operating Range: 85–110% of rated voltage for pick-up; 20–75% for release
  • Protection Degree: IP20
  • Electrical Connections: Screw terminals
  • Mounting: 35mm DIN rail or screw mounting
  • Operating Temperature: −5°C to +40°C
  • Dimensions (H x L x W): 66.5mm x 85mm x 18mm
  • Weight: 0.13 kg
Key Features
  • 25A modular contactor for switching AC loads
  • Two normally open power contacts
  • 110V AC control coil
  • Compact 2-pole DIN rail design
  • Silent operation for residential and commercial installations
  • Suitable for lighting, heating, HVAC and automation circuits
  • Mechanical life of up to 3 million operations
  • Electrical life of at least 100,000 operations
Professional Installation Requirements
  • Installation and wiring must be carried out by a licensed electrician in accordance with applicable Australian electrical installation requirements, including AS/NZS 3000. Isolate the supply before installation or maintenance.
Applications
  • Lighting circuit control
  • Electric heating systems
  • HVAC control panels
  • Residential and commercial automation systems
  • Distribution boards and electrical control panels
  • Remote switching of compatible AC loads
Standards & Compliance
  • Applicable standard: AS/NZS IEC 60947.4.1:2015 for low-voltage electromechanical contactors and motor-starters
Environmental Benefits
  • Supports efficient load management by switching lighting, heating and HVAC equipment only when required
  • Long mechanical operating life can reduce replacement frequency and associated waste
  • Compact DIN rail construction reduces installation material requirements
  • Electrical components should be recycled through approved e-waste or electrical recycling channels at end of life
Warranty Information

CHINT’s general warranty policy for other low-voltage apparatus provides 27 months from the date of manufacture, subject to authorised sales channels, contract terms and applicable conditions.

Available Now

Available through authorised CHINT distributors in Australia.
