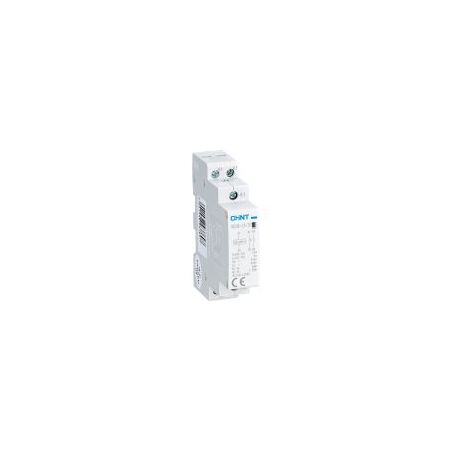

Modular Contactor 25A 2NO 24V Coil NCH8 Chint

BRAND: CABAC
SKU: 256236
$68.70 List price: $91.60
+ −
30 Days Return Electricians Unlock Trade Access
Chint NCH8 modular contactor features 25A rating, 2NO contacts, 24V AC coil, DIN rail mount. Ideal for lighting and heating loads.

Alternatively Known As: 25A DIN-Rail Contactor, 2NO Modular Contactor, Lighting Contactor, Heating Contactor

Technical Specifications
  • Model: NCH8-25/20 24V
  • Rated Current: 25A
  • Contact Configuration: 2NO, two normally open contacts
  • Coil Voltage: 24V AC
  • Frequency: 50/60Hz
  • Rated Operational Voltage: 230V AC
  • Rated Insulation Voltage: 500V
  • Utilisation Category: AC-7a and AC-7b
  • Controlled Load Capacity: Up to 5kW for AC-7a loads
  • Motor-Load Capacity: Up to 1.2kW for AC-7b loads
  • Mounting: 35mm DIN rail
  • Product Reference: 256236
  • Dimensions (H x L x W): 65.5mm x 85mm x 18mm
  • Weight: 0.2 kg
Key Features
  • Two normally open power contacts for switching single-phase circuits
  • 24V AC coil suitable for low-voltage control systems
  • 25A rating for lighting, heating and other non-inductive or low-inductive loads
  • Compact 18mm modular format for distribution boards and control panels
  • DIN-rail mounting for straightforward panel installation
  • Suitable for residential, commercial and small industrial control applications
Professional Installation Requirements
  • Installation and connection to mains-voltage circuits must be performed by a licensed electrician in accordance with AS/NZS 3000 and the manufacturer's instructions. Provide suitable short-circuit protection and ensure the 24V AC coil supply matches the specified rating.
Applications
  • Lighting control circuits
  • Electric heating control
  • Ventilation and air-conditioning control systems
  • Domestic appliance switching
  • Building automation and distribution-board control
  • Residential, commercial and small industrial electrical panels
Standards & Compliance
  • IEC/EN 61095 product standard
  • AS 60947.4.1 applicable Australian standard for electromechanical contactors
  • AS/NZS 3000 Wiring Rules applicable to installation
Environmental Benefits
  • Supports automated or scheduled switching of lighting and heating loads, which can help reduce unnecessary energy consumption
  • Compact DIN-rail construction reduces panel space and associated enclosure material requirements
  • Durable switching construction can reduce replacement frequency and electrical component waste
Warranty Information

CHINT's general policy for other low-voltage apparatus provides 27 months against defects in materials and workmanship from the date of manufacture when purchased through authorised sales channels; contract and local warranty terms may apply.

Available Now

Available through authorised CHINT distributors in Australia.
