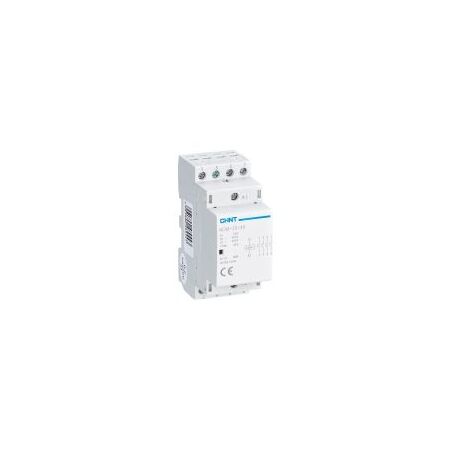

Modular Contactor 25A 4NO 110V Coil NCH8 Chint

BRAND: CABAC
SKU: 256105
$71.40 List price: $95.20
+ −
30 Days Return Electricians Unlock Trade Access
Chint NCH8 modular contactor features 25A rating, 4NO contacts, 110V AC coil and DIN rail mounting. Ideal for lighting, heating and pump control.

Alternatively Known As: NCH8-25/40 110V Modular Contactor, DIN Rail Contactor, Four-Pole AC Contactor

Technical Specifications
  • Model: NCH8-25/40 110V
  • Rated Operational Current: 25 A
  • Main Contacts: 4 normally open contacts
  • Number of Poles: 4P
  • Coil Voltage: 110 V AC, 50/60 Hz
  • Rated Operational Voltage: Up to 400 V AC
  • Utilisation Categories: AC-1, AC-7a, AC-7b and AC-3
  • Rated Insulation Voltage: 500 V
  • Protection Degree: IP20
  • Mounting: 35 mm DIN rail or screw mounting
  • Terminals: Screw type
  • Mechanical Life: Up to 3 million operations
  • Electrical Life: At least 100,000 operations
  • Operating Temperature: -5 °C to +40 °C
  • Dimensions (H x L x W): 85mm x 65.5mm x 36mm
  • Weight: 0.9 kg
Key Features
  • Four normally open switching contacts for multi-circuit control
  • 110 V AC coil for remote switching applications
  • Compact modular design suitable for distribution boards and control panels
  • DIN rail or screw mounting options
  • Suitable for lighting, heating, HVAC and pump control
  • Silent operation with no coil buzz
  • Front wiring diagram assists installation and commissioning
Professional Installation Requirements
  • Installation and connection to mains-voltage circuits must be performed by a licensed electrician in accordance with applicable Australian wiring rules and the manufacturer's instructions. Provide suitable short-circuit protection because the contactor is not designed to interrupt short-circuit current.
Applications
  • Lighting circuit control
  • Electric heating control
  • HVAC and ventilation systems
  • Pump control panels
  • Residential and commercial building automation
  • Low-voltage distribution and control panels
Standards & Compliance
  • AS 60947.4.1 covers electromechanical contactors in Australia; the NCH8 series is specified by the manufacturer to IEC 60947-4-1 and IEC/EN 61095 requirements.
Environmental Benefits
  • Durable electromechanical construction can extend service life and reduce replacement waste
  • Compact DIN rail format helps reduce control-panel space and associated enclosure material
  • Metal components are suitable for recovery through established electrical equipment recycling streams
Warranty Information

CHINT warranty policy provides 27 months from the date of manufacture for other low-voltage apparatus sold through authorised sales channels, subject to the applicable sales contract and warranty conditions.

Available Now

Available through authorised CHINT distributors in Australia.
