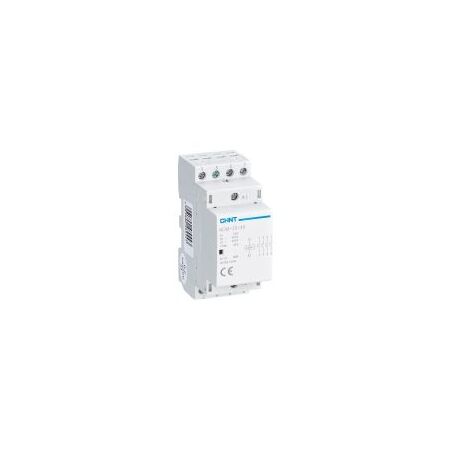

Modular Contactor 25A 4NO 240V Coil NCH8 Chint

BRAND: CABAC
SKU: 256154
$71.40 List price: $95.20
+ −
30 Days Return Electricians Unlock Trade Access
Chint NCH8 modular contactor features 25A rating, 4NO contacts, 240V AC coil, DIN rail mount. Ideal for lighting and heating loads.

Alternatively Known As: CHINT NCH8 25A 4-pole contactor, 4NO modular contactor, DIN rail contactor

Technical Specifications
  • Model: NCH8-25/40
  • Rated operational current: 25A
  • Main contacts: 4 normally open contacts
  • Coil voltage: 240V AC, 50/60Hz
  • Rated operational voltage: Up to 400V AC
  • Utilisation categories: AC-1, AC-7a, AC-7b and AC-3
  • AC-7b current rating: 9A
  • Conventional thermal current: 25A
  • Rated insulation voltage: 500V
  • Rated impulse withstand voltage: 4kV
  • Controlled power: Up to 16kW in AC-1 applications
  • Enclosure protection: IP20
  • Mounting: 35mm TH35 DIN rail or screw fixing
  • Coil pick-up range: 85% to 110% of rated control voltage
  • Coil release range: 20% to 75% of rated control voltage
  • Ambient operating temperature: -5°C to +40°C
  • Operation: Silent switching
  • Electrical life: 10,000 operations in AC-1/AC-7a applications
  • Mechanical life: 100,000 operations
  • Dimensions (H x L x W): 66.5mm x 85mm x 36mm
  • Weight: 0.2 kg
Key Features
  • Four normally open power contacts for simultaneous load switching
  • 25A AC-1/AC-7a rating for lighting, heating and low-inductive loads
  • 240V AC control coil suitable for standard Australian control circuits
  • Compact modular design for distribution boards and control panels
  • 35mm DIN rail or screw mounting
  • Silent operation for residential, commercial and light industrial installations
  • IP20 enclosure protection
  • Front-mounted wiring diagram for straightforward installation
Professional Installation Requirements
  • Installation, wiring and maintenance must be performed by a licensed electrician or suitably qualified electrical professional with the supply isolated. Install with suitable short-circuit protection and in accordance with AS/NZS 3000 and the manufacturer's instructions.
Applications
  • Lighting control circuits
  • Electric heating loads
  • Domestic appliances and low-inductive loads
  • Residential distribution boards
  • Commercial building services
  • Light industrial control panels
  • Remote switching of small AC motors, subject to appropriate derating
Standards & Compliance
  • AS/NZS IEC 60947.4.1:2015 is the applicable Australian/New Zealand standard reference for electromechanical contactors and motor-starters
  • Manufacturer-stated product standards: IEC/EN 61095 and IEC 60947-4-1
  • Electrical installations incorporating the contactor should comply with AS/NZS 3000
Environmental Benefits
  • Long mechanical service life can reduce replacement frequency and associated electrical equipment waste
  • Compact modular construction can reduce panel space and material use compared with larger conventional contactors
  • Enables scheduled or centralised switching of lighting and heating loads, which can support reduced energy consumption when correctly designed and operated
Warranty Information

CHINT's general policy for other low-voltage apparatus provides 27 months from the date of manufacture against defects in materials and workmanship when purchased through authorised sales channels; contract or local distributor terms may apply.

Available Now

Available through authorised CHINT distributors in Australia.
