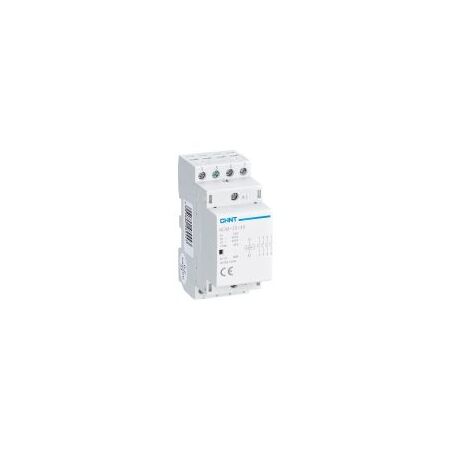

Modular Contactor 25A 4NO 24V Coil NCH8 Chint

BRAND: CABAC
SKU: 256090
$71.40 List price: $95.20
+ −
30 Days Return Electricians Unlock Trade Access
Chint NCH8 modular contactor features 25A rating, 4NO contacts, 24V AC coil and DIN rail mounting. Ideal for lighting, heating and pump control.

Alternatively Known As: Modular contactor, DIN rail contactor, lighting contactor, 4-pole contactor

Technical Specifications
  • Model: NCH8-25/40 24V
  • Contact Configuration: 4NO main contacts
  • Rated Operational Current: 25A AC-1 and AC-7a
  • AC-7b Rated Current: 9A
  • Rated Operational Voltage: Up to 400V AC
  • Rated Insulation Voltage: 500V
  • Rated Impulse Withstand Voltage: 4kV
  • Control Coil: 24V AC, 50/60Hz
  • Utilisation Category: AC-1, AC-7a and AC-7b
  • Protection Degree: IP20
  • Mounting: TH35-7.5 DIN rail
  • Mechanical Life: Up to 1,000,000 operating cycles
  • Electrical Life: Up to 100,000 operating cycles
  • Dimensions (H x L x W): 66.5mm x 85mm x 36mm
  • Weight: 0.23 kg
Key Features
  • Four normally open contacts for multi-circuit switching
  • 25A rating for lighting, heating and low-inductive loads
  • 24V AC coil suitable for low-voltage control circuits
  • Compact modular design for DIN rail installation
  • Suitable for remote switching and control applications
  • Low-noise operation
  • Requires suitable short-circuit protection as the contactor is not designed to interrupt short-circuit current
Professional Installation Requirements
  • Installation and wiring should be performed by a licensed electrician in accordance with AS/NZS 3000 and the manufacturer's instructions. Select suitable short-circuit and overload protection for the connected load.
Applications
  • Lighting control systems
  • Electric heating control
  • Ventilation and fan control
  • Pump control circuits
  • Residential and commercial building automation
  • Switching domestic appliances and low-inductive AC loads
Standards & Compliance
  • Relevant product standard: AS/NZS IEC 60947.4.1:2015 for electromechanical contactors and motor-starters
  • Electrical installation requirements: AS/NZS 3000:2018
Environmental Benefits
  • Supports centralised switching and control of lighting, heating and other electrical loads, helping avoid unnecessary operating time
  • Long mechanical and electrical service life can reduce replacement frequency and associated waste
  • RoHS compliance is declared for the CHINT NCH8 series
Warranty Information

CHINT warranty policy specifies 27 months from the date of manufacture for other low-voltage apparatus sold through authorised sales channels, subject to the applicable sales contract and Australian Consumer Law.

Available Now

Available through authorised CHINT distributors in Australia.
