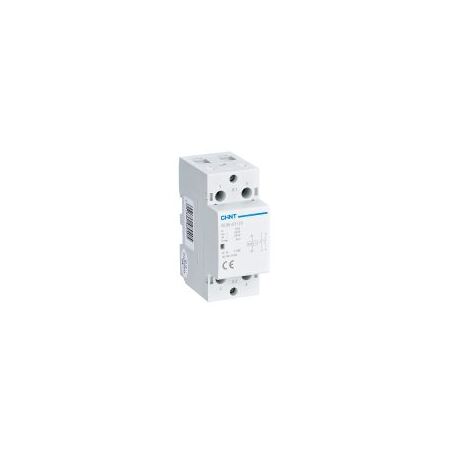

Modular Contactor 40A 2NO 110V Coil NCH8 Chint

BRAND: CABAC
SKU: 256106
$90.70 List price: $120.90
+ −
30 Days Return Electricians Unlock Trade Access
Chint NCH8 modular contactor features 40A rating, 2NO contacts, 110V AC coil and DIN rail mounting. Ideal for lighting, heating and pump control.

Alternatively Known As: 2-Pole Modular Contactor, DIN Rail Contactor, Installation Contactor, Lighting Contactor

Technical Specifications
  • Rated Current: 40 A AC-7a
  • Contact Configuration: 2NO
  • Number of Poles: 2P
  • Coil Voltage: 110 V AC, 50/60 Hz
  • Rated Operational Voltage: Up to 400 V AC
  • Rated Insulation Voltage: 500 V
  • Utilisation Categories: AC-1, AC-7a, AC-7b and AC-3
  • Protection Degree: IP20
  • Mounting: 35 mm DIN rail or screw mounting
  • Terminals: Screw terminals
  • Operating Temperature: -5 °C to +40 °C
  • Mechanical Life: Up to 3 million operations
  • Dimensions (H x L x W): 85mm x 66.5mm x 18mm
  • Weight: 0.24 kg
Key Features
  • 40 A modular AC contactor for switching household and light commercial loads
  • Two normally open power contacts for double-pole circuit control
  • 110 V AC control coil
  • Compact 2-module DIN rail format
  • Suitable for lighting, heating, ventilation and pump control applications
  • Low-noise operation with no coil buzz during normal operation
  • Can be used for motor loads when correctly derated and protected
  • Requires suitable short-circuit protection in the installation
Professional Installation Requirements
  • Installation and connection to mains-voltage circuits should be performed by a licensed electrician in accordance with AS/NZS 3000, the manufacturer's instructions and applicable local electrical regulations. Select suitable short-circuit protection and derate the contactor for motor or other inductive loads.
Applications
  • Lighting circuit control
  • Electric heating control
  • Ventilation and HVAC equipment control
  • Pump control panels
  • Household automation systems
  • Residential, commercial and light industrial switchboards
Standards & Compliance
  • AS 60947.4.1 is the relevant Australian reference for electromechanical contactors and motor-starters; verify the specific product's RCM/EESS status before installation.
  • AS/NZS 3820 applies to essential safety requirements for in-scope electrical equipment where relevant.
Environmental Benefits
  • Supports automated switching of lighting, heating and HVAC loads, helping avoid unnecessary operating time and energy use.
  • Long mechanical service life can reduce replacement frequency and associated material waste.
  • Metal terminals and other product materials can be separated for recycling at end of service life where suitable facilities are available.
Warranty Information

CHINT warranty policy states that other low-voltage apparatus is covered against defects in materials and workmanship for 27 months from the date of manufacture when sold through authorised channels; contract and local distributor conditions may apply.

Available Now

Available through authorised CHINT distributors in Australia.
