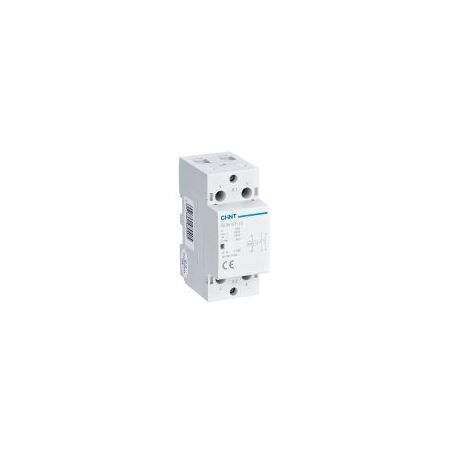

Modular Contactor 40A 2NO 230V Coil NCH8 Chint

BRAND: CABAC
SKU: 256081
$90.70 List price: $120.90
+ −
30 Days Return Electricians Unlock Trade Access
Chint NCH8 modular contactor features 40A rating, 2NO contacts, 230V AC coil and DIN rail mounting. Ideal for lighting, heating and pump control.

Alternatively Known As: Modular AC contactor, DIN rail contactor, installation contactor, lighting contactor

Technical Specifications
  • Rated Current: 40A AC-7a
  • Contact Configuration: 2 normally open contacts
  • Coil Voltage: 230V AC, 50/60Hz
  • Rated Operational Voltage: 230V AC
  • Utilisation Categories: AC-1, AC-3, AC-7a and AC-7b
  • Rated Insulation Voltage: 500V AC
  • Protection Rating: IP20
  • Electrical Endurance: 30,000 operating cycles
  • Mechanical Endurance: 30,000 operating cycles
  • Operating Temperature: -25°C to +40°C
  • Mounting: 35mm DIN rail or screw mounting
  • Terminal Type: Screw terminals
  • Dimensions (H x L x W): 85mm x 65.5mm x 36mm
  • Weight: 0.23 kg
Key Features
  • Two normally open switching contacts
  • 40A AC-7a current rating for lighting, heating and similar loads
  • 230V AC coil suitable for standard control circuits
  • Compact two-module DIN rail design
  • Silent operation during normal switching
  • Suitable for residential, commercial and light industrial control panels
  • Designed for remote switching of lighting, heating, ventilation and small motor loads
Professional Installation Requirements
  • Installation and connection to 230V mains should be performed by a licensed electrician in accordance with applicable Australian electrical installation requirements. Provide suitable short-circuit protection and install vertically on a compatible 35mm DIN rail or by screw mounting.
Applications
  • Lighting circuit control
  • Electric heating control
  • Pump and fan control
  • Ventilation and air-conditioning equipment
  • Residential and commercial distribution boards
  • Remote switching of small AC motors and household appliances
Standards & Compliance
  • Relevant Australian standard: AS/NZS 60947.4.1 for electromechanical contactors and motor-starters
  • AS/NZS 3820 essential safety requirements for electrical equipment may apply under the Australian electrical equipment safety framework
  • Manufacturer-declared product standards: IEC/EN 61095 and IEC/EN 60947-4-1
Environmental Benefits
  • Enables automated switching and scheduling of lighting, heating and pump loads, which can reduce unnecessary operating time
  • Durable electromechanical construction can reduce replacement frequency and product waste
  • Metal components and thermoplastic housing materials can be separated for appropriate recycling at end of service life
Warranty Information

Up to 18 months from the date of sale to the end user, subject to CHINT warranty terms and authorised sales-channel conditions.

Available Now

Available through authorised CHINT distributors in Australia.
