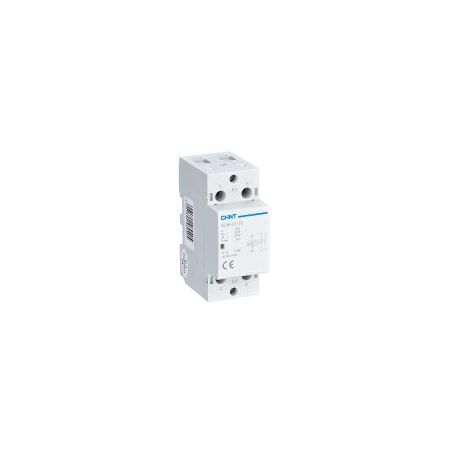

Modular Contactor 40A 2NO 24V Coil NCH8 Chint

BRAND: CABAC
SKU: 256082
$90.70 List price: $120.90
+ −
30 Days Return Electricians Unlock Trade Access
Chint NCH8 modular contactor features 40A rating, 2NO contacts, 24V AC coil and DIN rail mounting. Ideal for lighting, heating and pump control.

Alternatively Known As: NCH8 40A 2NO Contactor, DIN Rail Contactor, Modular AC Contactor

Technical Specifications
  • Model: NCH8-40/20 24V
  • Product Code: 256082
  • Rated Current: 40 A
  • Contact Configuration: 2NO
  • Rated Control Voltage: 24 V AC, 50/60 Hz
  • Rated Operational Voltage: 230/400 V AC
  • Rated Insulation Voltage: 500 V
  • Utilisation Categories: AC-1, AC-7a, AC-7b and AC-3
  • Coil Operating Range: 85–110% of Us for pick-up; 20–75% of Us for release
  • Protection Degree: IP20
  • Mechanical Life: 3 million operations
  • Electrical Life: At least 100,000 operations
  • Terminals: Screw type
  • Mounting: 35 mm DIN rail or screw mounting
  • Dimensions (H x L x W): 85mm x 66.5mm x 36mm
  • Weight: 0.3 kg
Key Features
  • 40A switching capacity for residential, commercial and light industrial loads
  • Two normally open power contacts
  • 24V AC coil for low-voltage control circuits
  • Suitable for lighting, heating, ventilation, HVAC and pump control
  • Compact modular design for distribution boards and control panels
  • DIN rail or screw mounting options
  • Silent operation with no coil buzz
  • Suitable for remote switching and building automation applications
Professional Installation Requirements
  • Installation and connection to mains-voltage circuits should be carried out by a licensed electrician in accordance with AS/NZS 3000 and applicable local electrical regulations.
Applications
  • Lighting circuit control
  • Electric heating control
  • HVAC and ventilation systems
  • Pump control panels
  • Building automation systems
  • Residential and commercial distribution boards
  • Control panels and low-voltage switchgear assemblies
Standards & Compliance
  • Applicable product standard: AS/NZS IEC 60947.4.1:2015 for electromechanical contactors and motor-starters
  • Installation should comply with AS/NZS 3000:2018 Wiring Rules
Environmental Benefits
  • Enables scheduled and demand-based control of lighting, heating, ventilation and pump loads, helping reduce unnecessary energy consumption
  • Long mechanical service life can reduce replacement frequency and associated material waste
  • Metal and thermoplastic components can be separated for appropriate end-of-life recycling where local facilities accept them
Warranty Information

CHINT warranty policy provides 27 months from the date of manufacture for other low-voltage apparatus sold through authorised channels, subject to the applicable sales contract and warranty conditions.

Available Now

Available through authorised CHINT distributors in Australia.
