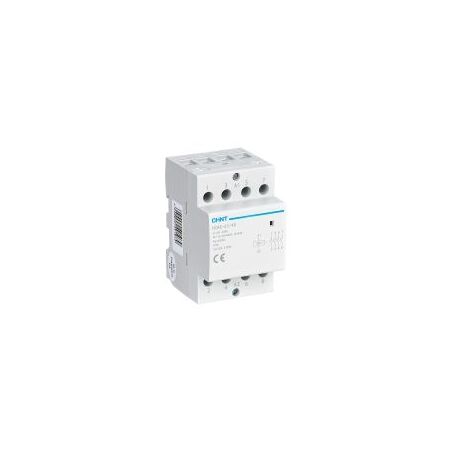

Modular Contactor 40A 4NO 240V Coil NCH8 Chint
Chint NCH8 modular contactor features 40A rating, 4NO contacts, 240V AC coil, DIN rail mount. Ideal for lighting and heating loads.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: DIN Rail Modular Contactor, Four-Pole Normally Open Contactor, Lighting Contactor, Heating Contactor
Technical Specifications
- Rated Current: 40A AC-1/AC-7a
- Contact Configuration: 4NO, four normally open main contacts
- Coil Voltage: 240V AC, 50/60Hz
- Rated Operational Voltage: 230/400V AC
- Rated Insulation Voltage: 500V
- Rated Impulse Withstand Voltage: 4kV
- Utilisation Categories: AC-1, AC-7a and AC-7b with derating
- Protection Rating: IP20
- Mounting: 35mm DIN rail or screw mount
- Operating Temperature: -5°C to +40°C
- Electrical Life: 100,000 operations or greater
- Mechanical Life: 1,000,000 operations or greater
- Terminal Type: Screw terminals
- Dimensions (H x L x W): 65.5mm x 85mm x 54mm
- Weight: 0.1 kg
Key Features
- Four normally open contacts for switching multiple circuits
- 40A rating for lighting, heating and suitable low-inductive loads
- 240V AC control coil for common Australian supply systems
- Compact modular design for distribution boards and control panels
- 35mm DIN rail mounting with screw-mount capability
- Quiet operation with no coil buzz during normal operation
- IP20 enclosure protection for indoor switchboard applications
- Suitable for AC-7b household motor loads when correctly derated
- Requires suitable short-circuit protection because the contactor is not designed to interrupt short-circuit current
Professional Installation Requirements
- Installation and connection to mains voltage must be performed by a licensed electrician in accordance with AS/NZS 3000, the manufacturer's instructions and applicable local electrical requirements. Select short-circuit and overload protection to suit the installation.
Applications
- Lighting circuit control
- Electric heating systems
- HVAC control panels
- Residential and commercial building automation
- Distribution boards and switchboards
- Remote switching of household appliances and low-inductive loads
Standards & Compliance
- AS/NZS 3947.4.1 for low-voltage electromechanical contactors and motor-starters is the applicable Australian/New Zealand product reference
- AS/NZS 3820 essential safety requirements apply where the equipment is classified as in-scope electrical equipment
- Electrical installation must comply with AS/NZS 3000
Environmental Benefits
- Supports scheduled and centralised control of lighting and heating loads, which can help reduce unnecessary operating time
- Durable modular construction and long mechanical life can reduce replacement frequency and associated waste
- Metallic components are generally recyclable at end of service life
- Low-noise operation supports efficient building-control applications without continuous coil buzz
Warranty Information
CHINT's general policy provides 27 months from the date of manufacture against defects in materials and workmanship for other low-voltage apparatus sold through authorised channels. Contract terms and local distributor conditions may vary.
Available Now
Available through authorised CHINT distributors in Australia.
