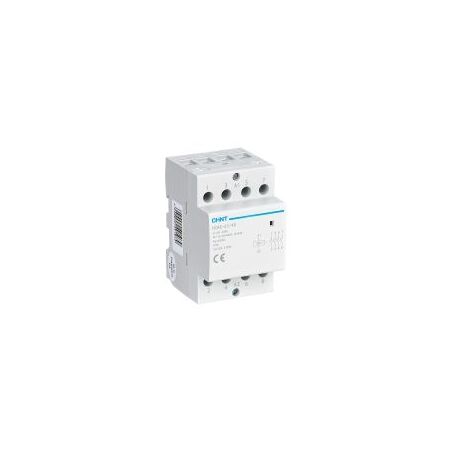

Modular Contactor 40A 4NO 24V Coil NCH8 Chint

BRAND: CABAC
SKU: 256098
$96.20 List price: $128.20
+ −
30 Days Return Electricians Unlock Trade Access
Chint NCH8 modular contactor features 40A rating, 4NO contacts, 24V AC coil and DIN rail mounting. Ideal for lighting, heating and pump control.

Alternatively Known As: 4-pole modular contactor, DIN rail contactor, lighting contactor, 4NO contactor

Technical Specifications
  • Rated Current: 40 A
  • Contact Configuration: 4NO, four normally open contacts
  • Coil Voltage: 24 V AC, 50/60 Hz
  • Rated Operational Voltage: 230/400 V AC, 50/60 Hz
  • Rated Insulation Voltage: 500 V
  • Utilisation Categories: AC-1, AC-3, AC-7a and AC-7b
  • Coil Operating Range: 85–110% of rated voltage for pick-up; 20–75% for release
  • Protection Degree: IP20
  • Mounting: 35 mm DIN rail or screw mounting
  • Terminals: Screw terminals
  • Mechanical Life: Up to 3 million operations
  • Electrical Life: At least 100,000 operations
  • Operating Temperature: −5°C to +40°C
  • Dimensions (H x L x W): 66.5mm x 85mm x 36mm
  • Weight: 1.0 kg
Key Features
  • Four normally open power contacts for simultaneous load switching
  • 24V AC control coil suitable for low-voltage control circuits
  • Compact three-module DIN rail format
  • Suitable for lighting, heating, ventilation and pump control
  • Silent operation with no coil buzz
  • Can be installed on a 35 mm DIN rail or secured with screws
  • Suitable for residential, commercial and light industrial control panels
Professional Installation Requirements
  • Installation and mains-voltage wiring should be carried out by a licensed electrician in accordance with AS/NZS 3000 and applicable local electrical safety requirements. Confirm the load, utilisation category and control-circuit voltage before installation.
Applications
  • Lighting circuit control
  • Electric heating control
  • HVAC and ventilation equipment
  • Pump control panels
  • Residential and commercial automation systems
  • Distribution boards and electrical control panels
Standards & Compliance
  • Applicable Australian/New Zealand product standard: AS/NZS 3947.4.1:2001 for low-voltage electromechanical contactors and motor-starters
  • Australian electrical equipment safety requirements may also require assessment against AS/NZS 3820 and applicable EESS requirements
  • Manufacturer-listed international standards: IEC/EN 61095 and IEC/EN 60947-4-1
Environmental Benefits
  • Modular design allows replacement of the contactor without replacing the complete control assembly
  • Long mechanical and electrical service life can reduce replacement frequency and equipment waste
  • Metal conductors and contacts can be separated for recycling at end of service life
  • Low-voltage coil control can support efficient centralised switching and automation strategies
Warranty Information

CHINT warranty policy provides 27 months from the date of manufacture for other low-voltage apparatus sold through authorised channels, subject to the applicable sales contract and warranty conditions.

Available Now

Available through authorised CHINT distributors in Australia.
