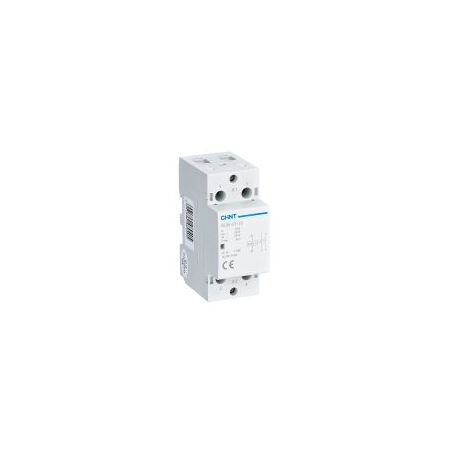

Modular Contactor 63A 1NO 1NC 240V Coil NCH8 Chint

BRAND: CABAC
SKU: 257448
$142.90 List price: $190.50
+ −
30 Days Return Electricians Unlock Trade Access
Chint NCH8 modular contactor features 63A rating, 1NO+1NC contacts, 240V AC coil, DIN rail mount. Ideal for lighting and heating loads.

Alternatively Known As: NCH8-63/11-240V AC Contactor, DIN Rail Contactor, Modular Lighting Contactor

Technical Specifications
  • Model: NCH8-63/11 240V
  • Rated Current: 63A
  • Contact Configuration: 1NO + 1NC
  • Number of Poles: 2P
  • Coil Voltage: 240V AC, 50/60Hz
  • Rated Operational Voltage: 230/400V AC
  • Rated Insulation Voltage: 500V
  • Utilisation Categories: AC-1, AC-3, AC-7a and AC-7b
  • Terminal Type: Screw terminals
  • Protection Degree: IP20
  • Mounting: 35mm DIN rail or screw mount
  • Coil Operating Range: 85% to 110% for pick-up; 20% to 75% for release
  • Mechanical Life: Up to 3 million operations
  • Electrical Life: At least 100,000 operations
  • Dimensions (H x L x W): 85mm x 66.5mm x 18mm
  • Weight: 0.23 kg
Key Features
  • 63A modular AC contactor for residential, commercial and light industrial applications
  • 1 normally open and 1 normally closed contact arrangement
  • 240V AC control coil suitable for Australian electrical systems
  • Compact 2-pole design for distribution boards and control panels
  • Suitable for switching lighting, heating, HVAC and other compatible AC loads
  • Quiet operation with no coil buzz under normal conditions
  • DIN rail or screw mounting options
  • IP20 housing for installation inside suitable enclosures
Professional Installation Requirements
  • Installation and connection to 240V mains circuits must be carried out by a licensed electrician in accordance with manufacturer instructions and applicable Australian electrical installation requirements. Provide suitable short-circuit protection; the contactor is not intended to interrupt short-circuit current.
Applications
  • Lighting circuit control
  • Electric heating loads
  • HVAC and ventilation control
  • Household automation systems
  • Distribution boards and electrical control panels
  • Low-inductive AC load switching
Standards & Compliance
  • Applicable Australian/New Zealand product standard: AS/NZS IEC 60947.4.1:2015 for electromechanical contactors and motor starters. Confirm product marking, certification and local approval requirements before installation.
Environmental Benefits
  • Supports timed or automated switching of lighting and heating loads, which can help reduce unnecessary operating time
  • Long mechanical and electrical service life can reduce replacement frequency and product waste
  • Metal and polymer components may be recyclable through appropriate electrical equipment recycling channels
Warranty Information

CHINT warranty policy states 27 months from the date of manufacture for other low-voltage apparatus sold through authorised channels, subject to the applicable sales contract and warranty conditions.

Available Now

Available through authorised CHINT distributors in Australia.
