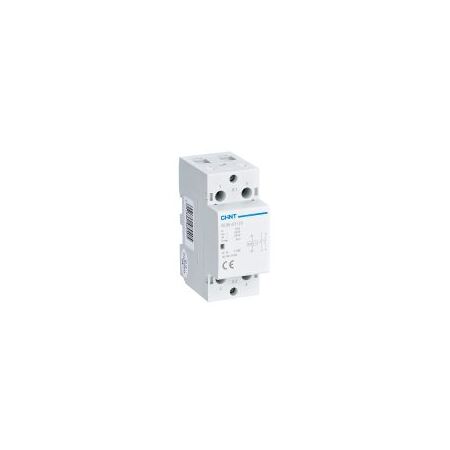

Modular Contactor 63A 2NO 110V Coil NCH8 Chint

BRAND: CABAC
SKU: 256108
$112.60 List price: $150.20
+ −
30 Days Return Electricians Unlock Trade Access
Chint NCH8 modular contactor features 63A rating, 2NO contacts, 110V AC coil and DIN rail mounting. Ideal for lighting, heating and pump control.

Alternatively Known As: 63A Modular Contactor, DIN Rail Contactor, 2NO AC Contactor, Lighting Contactor

Technical Specifications
  • Model: NCH8-63/20
  • Rated Current: 63 A
  • Contact Configuration: 2NO, two normally open contacts
  • Coil Voltage: 110 V AC, 50/60 Hz
  • Rated Operational Voltage: Up to 400 V AC
  • Rated Insulation Voltage: 500 V
  • Utilisation Categories: AC-1, AC-7a and AC-7b
  • Protection Rating: IP20
  • Mounting: 35 mm DIN rail or screw mounting
  • Terminals: Screw terminals
  • Mechanical Life: Up to 3 million operations
  • Electrical Life: At least 100,000 operations
  • Dimensions (H x L x W): 65.5mm x 85mm x 18mm
  • Weight: 0.23 kg
Key Features
  • 63A switching capacity for modular electrical control applications
  • Two normally open power contacts
  • 110V AC control coil
  • Compact 2-pole DIN rail format
  • Silent operation with no coil buzz under normal conditions
  • Suitable for lighting, heating, ventilation and pump control
  • Coil operating range supports reliable pull-in and release performance
Professional Installation Requirements
  • Installation and wiring should be carried out by a licensed electrician in accordance with AS/NZS 3000 and the manufacturer's instructions. Provide suitable short-circuit protection; the contactor is not intended to interrupt short-circuit current.
Applications
  • Lighting circuit control
  • Electric heating control
  • Ventilation and HVAC control systems
  • Pump and motor control within the applicable utilisation category
  • Residential, commercial and light-industrial switchboards
  • Building automation and power distribution panels
Standards & Compliance
  • Designed to IEC/EN 61095 for modular contactors
  • Designed to IEC/EN 60947-4-1 for electromechanical contactors
  • Applicable Australian standard: AS/NZS IEC 60947.4.1:2015; installation must also comply with AS/NZS 3000
Environmental Benefits
  • Supports automated switching and energy management of lighting, heating and pump loads
  • Modular construction allows replacement of the contactor without replacing an entire control assembly
  • Metallic and polymer components may be recoverable through appropriate electrical equipment recycling streams
  • Long mechanical service life can reduce replacement frequency and associated material waste
Warranty Information

36-month warranty from the date of manufacture under standard storage and transport conditions, subject to CHINT warranty exclusions and local authorised distributor terms.

Available Now

Available through authorised CHINT distributors in Australia.
