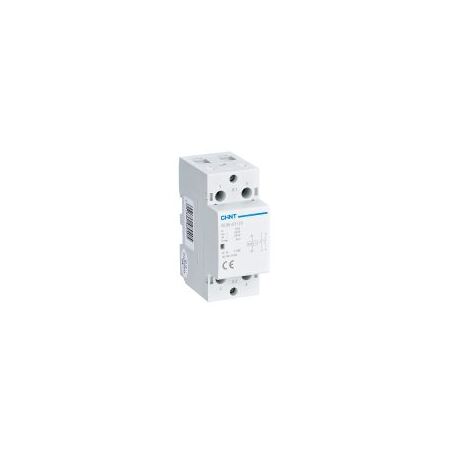

Modular Contactor 63A 2NO 220/230V Coil NCH8 Chint

BRAND: CABAC
SKU: 256093
$112.60 List price: $150.20
+ −
30 Days Return Electricians Unlock Trade Access
Chint NCH8 modular contactor features 63A rating, 2NO contacts, 220/230V AC coil, DIN rail mount. Ideal for lighting and heating loads.

Alternatively Known As: CHINT NCH8-63/20 contactor, 63A modular contactor, DIN rail contactor, 2-pole AC contactor

Technical Specifications
  • Model: NCH8-63/20
  • Rated Current: 63A AC-7a
  • Main Contacts: 2 normally open contacts, 2NO
  • Coil Voltage: 220/230V AC
  • Rated Frequency: 50/60Hz
  • Rated Operational Voltage: 230V AC for 2-pole configuration
  • Rated Insulation Voltage: 500V
  • Utilization Categories: AC-1, AC-3, AC-7a and AC-7b
  • Protection Degree: IP20
  • Mounting: 35mm DIN rail or screw mounting
  • Connection: Screw terminals
  • Operating Temperature: -5°C to +40°C
  • Electrical Life: At least 100,000 operations
  • Mechanical Life: Up to 3 million operations
  • Manufacturer Standards: IEC/EN 61095 and IEC 60947-4-1
  • Dimensions (H x L x W): 66.5mm x 85mm x 36mm
  • Weight: 0.23 kg
Key Features
  • 63A switching capacity for suitable lighting and heating loads
  • Two normally open power contacts
  • 220/230V AC operating coil
  • Compact modular format for switchboards and distribution enclosures
  • Suitable for 35mm DIN rail mounting
  • Silent operation with no coil buzz
  • Screw terminals for secure electrical connections
  • IP20 protection for installation inside suitable enclosures
Professional Installation Requirements
  • Installation and connection to mains electrical circuits must be performed by a licensed electrician in accordance with the manufacturer's instructions and AS/NZS 3000. Confirm load type, switching duty, circuit protection, conductor sizing and enclosure requirements before installation.
Applications
  • Lighting control circuits
  • Electric heating loads
  • Ventilation and air-conditioning control circuits
  • Residential and commercial distribution boards
  • Building automation and scheduled load control
  • Light industrial AC load switching
Standards & Compliance
  • Manufacturer declares compliance with IEC/EN 61095 and IEC 60947-4-1, with AS/NZS IEC 60947.4.1 being the applicable Australian/New Zealand contactor standard equivalent
  • Electrical installation and integration should comply with AS/NZS 3000:2018
  • Australian supply should be supported by the required RCM and EESS compliance documentation; product-specific Australian certification was not verified
Environmental Benefits
  • Supports scheduled and automated switching, which can help reduce unnecessary operating time for lighting and heating loads
  • Durable electromechanical construction can reduce replacement frequency and associated waste
  • Compact modular design helps minimise enclosure material and installation space
  • Plastic and metal components may be recoverable through appropriate electrical equipment recycling streams
Warranty Information

CHINT's general warranty policy provides 27 months from the date of manufacture for other low-voltage apparatus sold through authorised channels. Contractual terms or local distributor conditions may vary.

Available Now

Available through authorised CHINT distributors in Australia.
