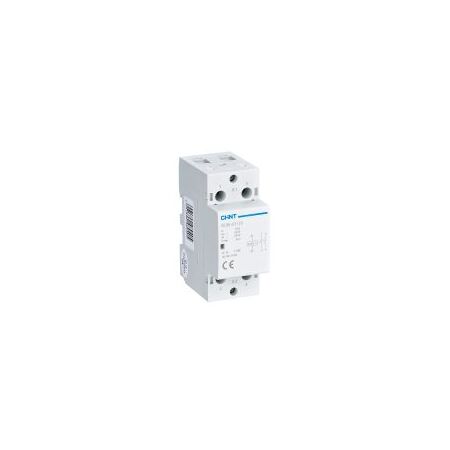

Modular Contactor 63A 2NO 240V Coil NCH8 Chint
Chint NCH8 modular contactor features 63A rating, 2NO contacts, 240V AC coil, DIN rail mount. Ideal for lighting and heating loads.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: DIN Rail Contactor, Modular AC Contactor, Installation Contactor, Lighting Contactor
Technical Specifications
- Rated Current: 63A AC-1/AC-7a
- Contact Configuration: 2 normally open contacts, 2P
- Coil Voltage: 240V AC, 50/60Hz
- Rated Operational Voltage: 230/400V AC
- Rated Insulation Voltage: 500V
- Rated Impulse Withstand Voltage: 4kV
- Utilisation Categories: AC-1, AC-7a and AC-7b with derating
- Protection Rating: IP20
- Mounting: 35mm DIN rail or screw mount
- Terminals: Screw terminals
- Operating Temperature: -5°C to +40°C
- Mechanical Life: Up to 3 million operations
- Electrical Life: At least 100,000 operations
- Dimensions (H x L x W): 85mm x 66.5mm x 18mm
- Weight: 0.136 kg
Key Features
- 63A switching capacity for suitable AC-1 and AC-7a loads
- Two normally open power contacts
- 240V AC control coil suitable for Australian control circuits
- Compact two-pole modular design
- DIN rail or screw mounting for distribution boards and control panels
- Suitable for lighting, electric heating, HVAC and household automation applications
- Silent operation with no coil buzz
- Use with suitable upstream short-circuit protection
Professional Installation Requirements
- Mains electrical installation and connection should be performed by a licensed electrician in accordance with manufacturer instructions and applicable Australian electrical installation requirements.
Applications
- Lighting circuit control
- Electric heating load switching
- HVAC and ventilation control
- Residential and commercial distribution boards
- Building automation and control panels
- Remote switching of domestic appliances and low-inductive loads
Standards & Compliance
- IEC/EN 61095 manufacturer standard for electromechanical contactors for household and similar purposes
- AS/NZS 3820 essential safety requirements may apply for Australian electrical equipment assessment
- AS/NZS 3000 Wiring Rules apply to installation within Australian electrical installations
Environmental Benefits
- Supports scheduled or centralised control of lighting and heating loads, which can help reduce unnecessary energy consumption when correctly designed
- Durable electromechanical construction can provide a long service life and reduce replacement waste
- Metal and thermoplastic components may be recoverable through appropriate electrical equipment recycling processes
Warranty Information
CHINT’s general policy for other low-voltage apparatus provides a 27-month warranty from the date of manufacture against defects in materials and workmanship when purchased through authorised sales channels; contract terms may vary.
Available Now
Available through authorised CHINT distributors in Australia.
