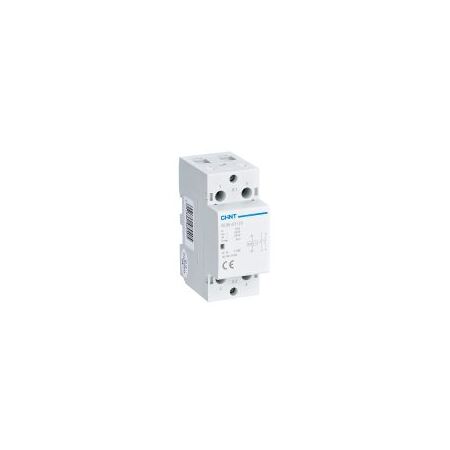

Modular Contactor 63A 2NO 24V Coil NCH8 Chint

BRAND: CABAC
SKU: 256094
$112.60 List price: $150.20
+ −
30 Days Return Electricians Unlock Trade Access
Chint NCH8 modular contactor features 63A rating, 2NO contacts, 24V AC coil and DIN rail mounting. Ideal for lighting, heating and pump control.

Alternatively Known As: DIN Rail Modular Contactor, 63A 2-Pole Contactor, NCH8-63/20-24 Contactor

Technical Specifications
  • Model: NCH8-63/20-24
  • Rated Current: 63 A AC-7a
  • Contact Configuration: 2NO, 2-pole
  • Coil Voltage: 24 V AC, 50/60 Hz
  • Rated Operational Voltage: 230/400 V AC, 50/60 Hz
  • Rated Insulation Voltage: 500 V
  • Utilisation Categories: AC-1, AC-3, AC-7a and AC-7b
  • Protection Degree: IP20
  • Mounting: 35 mm DIN rail or screw mounting
  • Terminals: Screw type
  • Mechanical Life: 3 million operations
  • Electrical Life: At least 100,000 operations
  • Operating Temperature: -5°C to +40°C
  • Maximum Installation Altitude: 2,000 m
  • Dimensions (H x L x W): 65.5mm x 85mm x 36mm
  • Weight: 0.2 kg
Key Features
  • Two normally open power contacts for switched-load control
  • 63A rating for lighting, heating and selected motor-load applications
  • 24V AC control coil suitable for low-voltage control circuits
  • Compact modular design for distribution boards and control panels
  • DIN rail mounting with screw-mounting capability
  • Silent-operation design with no coil buzz
  • IP20 enclosure protection
  • Suitable for residential, commercial and light industrial systems
Professional Installation Requirements
  • Installation and mains-voltage connection should be carried out by a licensed electrician in accordance with AS/NZS 3000 and applicable local electrical requirements. Provide suitable short-circuit protection and confirm load suitability before commissioning.
Applications
  • Lighting circuit control
  • Electric heating and ventilation control
  • Pump and motor control circuits
  • Building automation and household automation systems
  • Electrical distribution boards and control panels
Standards & Compliance
  • Applicable product standard: AS/NZS 3947.4.1 for electromechanical contactors and motor-starters
  • Installation requirements: AS/NZS 3000 Wiring Rules
  • CHINT product documentation specifies IEC/EN 61095 and IEC/EN 60947-4-1; verify Australian certification and responsible-supplier requirements for the supplied unit
Environmental Benefits
  • Enables automated switching and scheduling of lighting, heating and pump loads, supporting reduced unnecessary energy consumption
  • Long mechanical service life can reduce replacement frequency and associated material waste
  • Compact modular construction helps minimise enclosure and installation material requirements
Warranty Information

CHINT's general warranty policy lists 27 months from the date of manufacture for other low-voltage apparatus supplied through authorised sales channels, subject to the applicable sales contract and warranty conditions.

Available Now

Available through authorised CHINT distributors in Australia.
