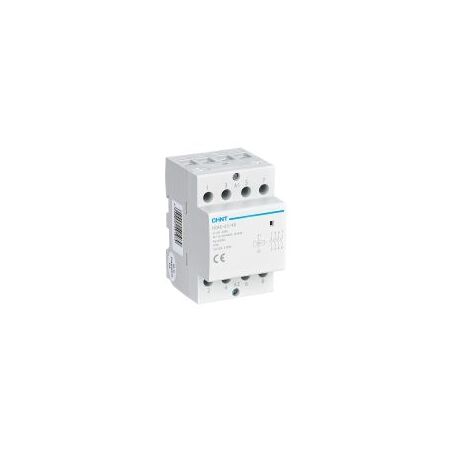

Modular Contactor 63A 4NO 220/230V Coil NCH8 Chint

BRAND: CABAC
SKU: 256101
$112.60 List price: $150.20
+ −
30 Days Return Electricians Unlock Trade Access
Chint NCH8 modular contactor features 63A rating, 4NO contacts, 220/230V AC coil and DIN rail mounting. Ideal for lighting, heating and pump control.

Alternatively Known As: 63A Modular Contactor, 4-Pole DIN Rail Contactor, NCH8-63/40 Contactor

Technical Specifications
  • Model: NCH8-63/40
  • Rated Current: 63 A
  • Contact Configuration: 4NO, four normally open contacts
  • Coil Voltage: 220/230 V AC, 50/60 Hz
  • Rated Operational Voltage: 230/400 V AC
  • Rated Insulation Voltage: 500 V
  • Utilisation Categories: AC-1, AC-7a, AC-7b and AC-3
  • Mounting: 35 mm DIN rail or screw mount
  • Terminal Type: Screw terminals
  • Protection Degree: IP20
  • Mechanical Life: 3 million operations
  • Electrical Life: Minimum 100,000 operations
  • Ambient Temperature: -5 °C to +40 °C
  • Altitude: Up to 2,000 m
  • Dimensions (H x L x W): 66.5mm x 85mm x 36mm
  • Weight: 0.41 kg
Key Features
  • Four normally open power contacts for multi-circuit switching
  • 63A rated modular contactor for residential, commercial and light-industrial control applications
  • 220/230V AC operating coil suitable for standard control supplies
  • Compact 4-pole DIN rail design
  • Suitable for lighting, heating, ventilation, pump and household automation control
  • Silent operation with no coil buzz
  • Can be mounted on 35 mm DIN rail or by screws
Professional Installation Requirements
  • Installation and connection to mains-voltage circuits must be carried out by a licensed electrician in accordance with AS/NZS 3000, the manufacturer's instructions and applicable local electrical requirements.
Applications
  • Lighting circuit control
  • Electric heating control
  • Pump switching and control panels
  • HVAC and ventilation equipment
  • Household automation systems
  • Commercial and light-industrial electrical installations
Standards & Compliance
  • Designed to IEC/EN 60947-4-1 requirements for low-voltage contactors and motor-starters; assess use against the applicable AS/NZS 60947.4.1 requirements.
  • Electrical installation should comply with AS/NZS 3000 Wiring Rules.
Environmental Benefits
  • Durable construction and long mechanical life can reduce replacement frequency and associated material waste
  • Metal electrical components are generally recoverable for recycling at end of service life
  • Suitable for automated lighting, heating and pump control that can support efficient system operation
Warranty Information

CHINT low-voltage apparatus is covered for defects in materials and workmanship for 27 months from the date of manufacture when purchased through authorised sales channels; contract terms may vary.

Available Now

Available through authorised CHINT distributors in Australia.
