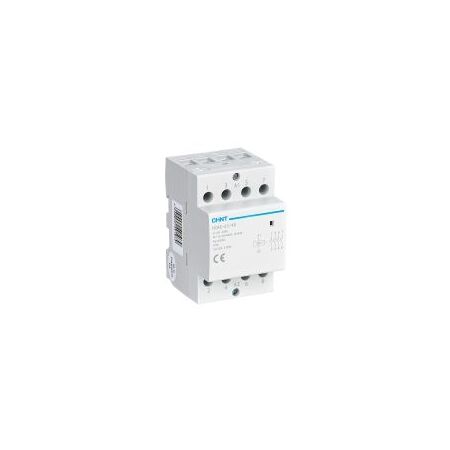

Modular Contactor 63A 4NO 240V Coil NCH8 Chint

BRAND: CABAC
SKU: 256162
$112.60 List price: $150.20
+ −
30 Days Return Electricians Unlock Trade Access
Chint NCH8 modular contactor features 63A rating, 4NO contacts, 240V AC coil, DIN rail mount. Ideal for lighting and heating loads.

Alternatively Known As: CHINT NCH8-63/40 4-Pole Modular Contactor, DIN Rail Contactor, Lighting Contactor, Heating Contactor

Technical Specifications
  • Rated Current: 63 A
  • Contact Configuration: 4NO, four normally open contacts
  • Coil Voltage: 240 V AC, 50/60 Hz
  • Rated Operational Voltage: Up to 400 V AC
  • Rated Insulation Voltage: 500 V
  • Utilisation Categories: AC-1, AC-7a, AC-7b and AC-3
  • Protection Degree: IP20
  • Mounting: 35 mm DIN rail or screw mount
  • Terminals: Screw type
  • Mechanical Life: Up to 3 million operations
  • Dimensions (H x L x W): 65.5mm x 85mm x 54mm
  • Weight: 0.32 kg
Key Features
  • Four normally open power contacts for simultaneous switching of multiple circuits
  • 63 A rating for resistive, lighting, heating and similar loads
  • 240 V AC control coil suitable for standard Australian control circuits
  • Compact modular design for distribution boards and control panels
  • DIN rail mounting with screw-mount option
  • Silent operation with no coil buzz
  • Suitable for residential, commercial and light industrial applications
Professional Installation Requirements
  • Installation and mains electrical connection should be performed by a licensed electrician in accordance with AS/NZS 3000 and applicable manufacturer instructions. Provide suitable overcurrent and short-circuit protection as part of the installation.
Applications
  • Lighting control circuits
  • Electric heating loads
  • HVAC and ventilation equipment
  • Household and building automation systems
  • Distribution boards and electrical control panels
  • Remote switching of multiple single-phase or multi-phase circuits
Standards & Compliance
  • AS/NZS IEC 60947.4.1:2015 for electromechanical contactors and motor-starters
  • IEC/EN 61095 for electromechanical contactors for household and similar applications
Environmental Benefits
  • Enables scheduled and demand-based switching of lighting, heating and HVAC loads, helping reduce unnecessary energy consumption
  • Long mechanical service life can reduce replacement frequency and associated product waste
  • Compact modular construction helps reduce control-panel material and installation space requirements
Warranty Information

CHINT warranty policy specifies 27 months from the date of manufacture for other low-voltage apparatus sold through authorised sales channels, subject to applicable contract terms and conditions.

Available Now

Available through authorised CHINT distributors in Australia.
