Making Trade Life Easy!

Home/Electrical/Switchgear/Relays/Overload Relays/Modular Current Control Relay | 5A 250V AC/DC | Overcurrent Detection | LED Indicators by Clipsal

Trade Discount 33%

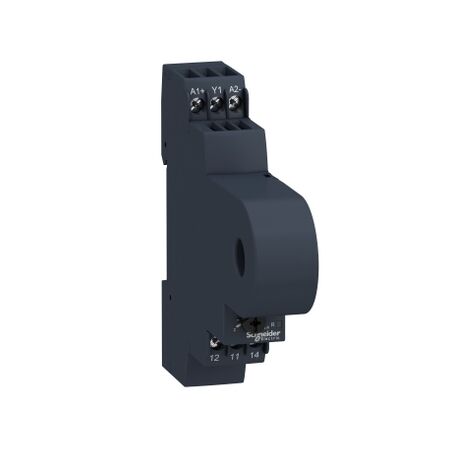

Harmony Control Relays, Modular current Control Relay, 5A, 1CO, overcurrent function, 250V AC DC

Modular Current Control Relay | 5A 250V AC/DC | Overcurrent Detection | LED Indicators by Clipsal

BRAND: Clipsal

SKU: RM17JC00MW

$281.20 List price: $421.90

+ −

30 Days Return Delivery Options

Modular current control relay with 5A and 250V AC/DC rating—ideal for industrial automation and commercial energy monitoring. Built for high durability, with overcurrent detection and LED status indicators.

Description
Attachments

Product Name/Title: Harmony Control Relays, Modular current Control Relay, 5A, 1CO, overcurrent function, 250V AC DC

Brand: Clipsal

SKU: RM17JC00MW

Alternatively Known As: Modular Current Control Relay, Overcurrent Relay, 5A Relay

Technical Specifications

Rated current: 5A
Rated voltage: 250V AC/DC
Electrical durability: 100,000 cycles
Mechanical durability: 30,000,000 cycles
Insulation resistance: > 500 MOhm at 500 V DC
IP rating: IP20 (terminals), IP30 (casing)
Operating temperature: -20 to 50 °C
Humidity: 95% at 55 °C
Control circuit voltage: 24...240 V AC/DC
Dimensions (H x L x W): 90mm x 70mm x 17.5mm
Weight: 0.13 kg

Key Features

Overcurrent detection functionality
LED indicators for power and relay status
High electrical and mechanical durability

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Automation systems, machinery control
Commercial: Building management systems, energy monitoring

Standards & Compliance

Complies with IEC 60255 for safety and performance standards.

Environmental Benefits

Complies with environmental standards and regulations.

Warranty Information

18 months warranty against manufacturing defects.

Available Now

The Clipsal Harmony Control Relay is available now for immediate purchase. Ideal for industrial automation and control applications.

RM17JC00MW (RM17JC00MW, 454 Kb) [Download]
