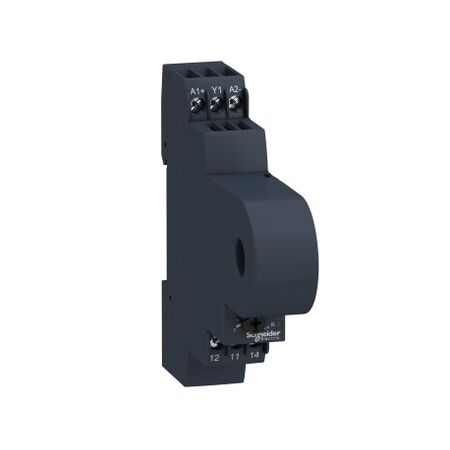

Modular Current Control Relay 5A 250VAC DC Overcurrent Clipsal
Clipsal Modular Current Control Relay features 5A rated current, 250V AC DC and 100000 cycle durability. Ideal for automation and machinery control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Rated current: 5A
- Rated voltage: 250V AC/DC
- Electrical durability: 100,000 cycles
- Mechanical durability: 30,000,000 cycles
- Insulation resistance: > 500 MOhm at 500 V DC
- IP rating: IP20 (terminals), IP30 (casing)
- Operating temperature: -20 to 50 °C
- Humidity: 95% at 55 °C
- Control circuit voltage: 24...240 V AC/DC
- Dimensions (H x L x W): 90mm x 70mm x 17.5mm
- Weight: 0.13 kg
Key Features
- Overcurrent detection functionality
- LED indicators for power and relay status
- High electrical and mechanical durability
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Automation systems, machinery control
- Commercial: Building management systems, energy monitoring
Standards & Compliance
- Complies with IEC 60255 for safety and performance standards.
Environmental Benefits
- Complies with environmental standards and regulations.
Warranty Information
18 months warranty against manufacturing defects.
Available Now
The Clipsal Harmony Control Relay is available now for immediate purchase. Ideal for industrial automation and control applications.
