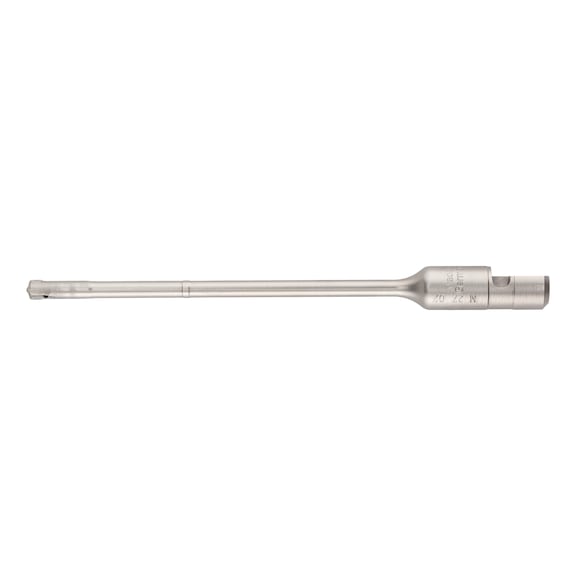

Modular Hammer Drill Bit 5mm | Dust-Free Drilling | 4 Cutting Edges | Bayonet Connection | by Wurth
The Modular Hammer Drill Bit 5mm is designed for efficient dust-free drilling in concrete and reinforced materials. With a symmetrical head featuring four cutting edges and a bayonet-click connection, it ensures precise drilling control and compatibility with dust class M vacuums. Ideal for construction sites, this drill bit minimizes dust exposure, extending tool life and improving air quality.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Modular Hammer Drill Bit 5mm | Dust-Free Drilling | 4 Cutting Edges | Bayonet Connection | by Wurth
Brand: Wurth
SKU: 648045015
Alternatively Known As: Hammer drill bit, modular drill bit, dust extraction drill bit, bayonet drill bit
Technical Specifications
- Diameter: 5 mm
- Length: 150 mm
- Working length: 100 mm
- Number of cutting edges: 4
- Tool holding device: Screw-in thread
- Drilling speed rating: 3/4
- Smoothness of running rating: 4/4
- Accuracy rating: 4/4
- Reinforcement strength rating: 3/4
- Service life rating: 4/4
- Dimensions (H x L x W): 5mm x 150mm x 5mm
- Weight: 0.2 kg
Key Features
- Dust-free drilling with immediate dust extraction from the drill hole
- Symmetrical head with four cutting edges for efficient drilling
- Bayonet-click connection for easy and secure attachment
- Drill depth indicator for precise drilling control
- Very good compatibility with reinforcements when used with appropriate suction units
- Extends service life and reduces health risks by minimizing dust exposure
Professional Installation Requirements
- Use only with compatible suction units and dust class M vacuums. Drilling through iron reinforcements requires permission from a structural engineer. Professional handling recommended for safety and compliance.
Applications
- Drilling in concrete and reinforced materials with dust extraction
- Use with dust class M vacuums and suction units for dust-free operation
- Suitable for construction sites requiring precise and clean drilling
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Dust extraction reduces airborne particles, improving air quality on construction sites
- Minimizes environmental contamination by capturing dust at the source
- Extends tool life, reducing waste and resource consumption
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth's warranty policy for details.
Available Now
The Wurth Modular Hammer Drill Bit 5mm is available for immediate purchase, ideal for professional construction and machining applications requiring dust-free and precise drilling.
