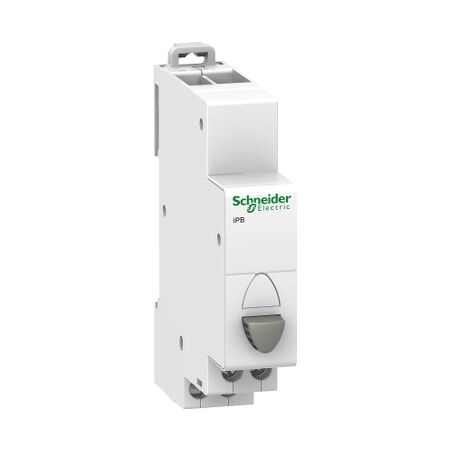

Modular Push Button 1NC | 20A 250V | Staggered Terminals | Grey by Clipsal
Modular push button with 20A current and 250V voltage—ideal for residential and small commercial spaces. Built for easy circuit control, with staggered terminals for simplified connection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Acti9, Single push-button, 1NC grey
Brand: Clipsal
SKU: A9E18030
Alternatively Known As: Acti9 Push Button, Clipsal Push Button, Modular Push Button
Technical Specifications
- Rated operational current: 20 A
- Rated operational voltage: 250 V AC
- Electrical durability: AC-22: 30000 cycles AC 50/60 Hz
- Wire stripping length: 9 mm
- Relative humidity: 95 % at 55 °C
- Ambient air temperature for operation: -35...70 °C
- Ambient air temperature for storage: -40...80 °C
- Dimensions (H x L x W): 82mm x 71.5mm x 18mm
- Weight: 0.039 kg
Key Features
- Modular push-button for controlling electric circuits.
- Single normally closed contact (NC).
- Staggered terminals for simplified connection.
- Tightening torque of connection: 1N.m.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments
- Commercial: Small commercial spaces
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Complies with IEC 60669-1 and IEC 60947-5-1 standards.
Warranty Information
18 months warranty against manufacturing defects.
Available Now
The Clipsal Acti9 Single Push-Button 1NC Grey is available now for immediate purchase. Ideal for residential and small commercial applications.
