Modular Push Button 1NO-1NC | 20A 250V | DIN Rail Mount by Clipsal
Modular push button with 1NO-1NC contacts and 20A, 250V rating—ideal for residential and small commercial spaces. Built for easy installation on DIN rail, with staggered terminals for simplified connection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

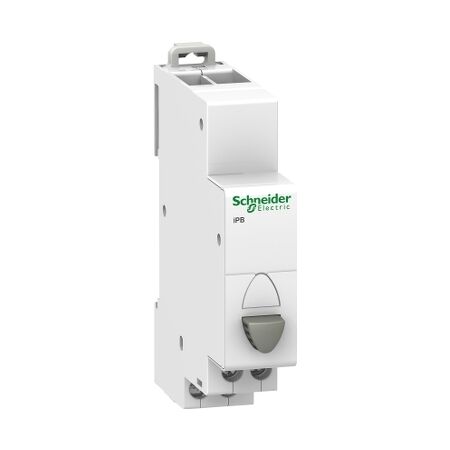

Product Name/Title: Acti9, Single push-button, 1NO-1NC grey
Brand: Clipsal
SKU: A9E18033
Alternatively Known As: Acti9 Push Button, Clipsal Push Button, Modular Push Button
Technical Specifications
- Rated operational current: 20 A
- Rated operational voltage: 250 V AC
- Electrical durability: AC-22: 30000 cycles AC 50/60 Hz
- Mounting mode: Fixed on 35 mm symmetrical DIN rail
- Wire stripping length: 9 mm
- Relative humidity: 95% at 55 °C
- Ambient air temperature for operation: -35...70 °C
- Ambient air temperature for storage: -40...80 °C
- Dimensions (H x L x W): 82mm x 71.5mm x 18mm
- Weight: 0.044 kg
Key Features
- Modular push-button design for controlling electric circuits.
- Includes normally open and normally closed contacts (1 NO + 1 NC).
- Staggered terminals for simplified connection.
- Tightening torque of connection is 1 N.m.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments
- Commercial: Small commercial spaces
Standards & Compliance
- Complies with IEC standards for safety and performance.
Environmental Benefits
- Complies with IEC 60669-1 and IEC 60947-5-1 standards.
Warranty Information
18 months warranty against manufacturing defects.
Available Now
The Clipsal Acti9 Single Push-Button 1NO-1NC Grey is available now for immediate purchase. Ideal for residential and small commercial applications.
