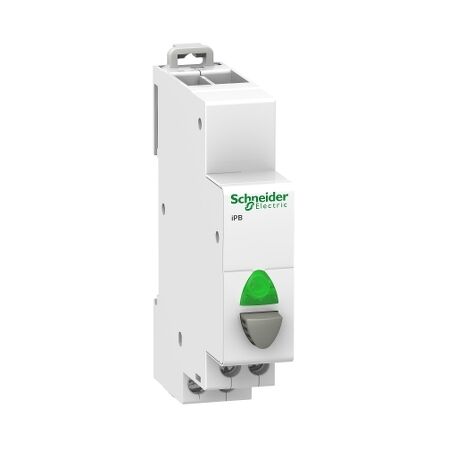

Modular Push Button with Green LED | 12-48V AC/DC | Grey by Clipsal
Modular push button with 12-48V AC/DC range and green LED indicator—ideal for small commercial and residential circuits. Built for easy installation, with staggered terminals and durable design.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Acti9, Single push-button, 1NO grey, indicator light green 12-48Vac/dc
Brand: Clipsal
SKU: A9E18038
Alternatively Known As: Acti9 Push Button, Clipsal Push Button, Modular Push Button Switch
Technical Specifications
- Rated operational current: 20 A
- Rated operational voltage: 250 V AC
- Control type: 1 push-button grey
- Signalling circuit voltage: AC: 12...48 V, DC: 12...48 V
- Electrical durability: AC-22: 30,000 cycles at AC 50/60 Hz
- Relative humidity: 95% at 55 °C
- Ambient air temperature for operation: -35...70 °C
- Ambient air temperature for storage: -40...80 °C
- Dimensions (H x L x W): 82mm x 71.5mm x 18mm
- Weight: 0.045 kg
Key Features
- Modular push-button with normally open contact.
- 0.3W green LED indicator light with a service life of 100,000 hours.
- Staggered terminals for simplified connection.
- Tightening torque of connection is 1N.m.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Small commercial and residential electrical circuits control.
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation standards.
Environmental Benefits
- Complies with IEC 60669-1 and IEC 60947-5-1 standards.
Warranty Information
18 months warranty against manufacturing defects.
Available Now
The Clipsal Acti9 Single Push-Button with Indicator Light is available now for immediate purchase. Ideal for small commercial and residential applications.
