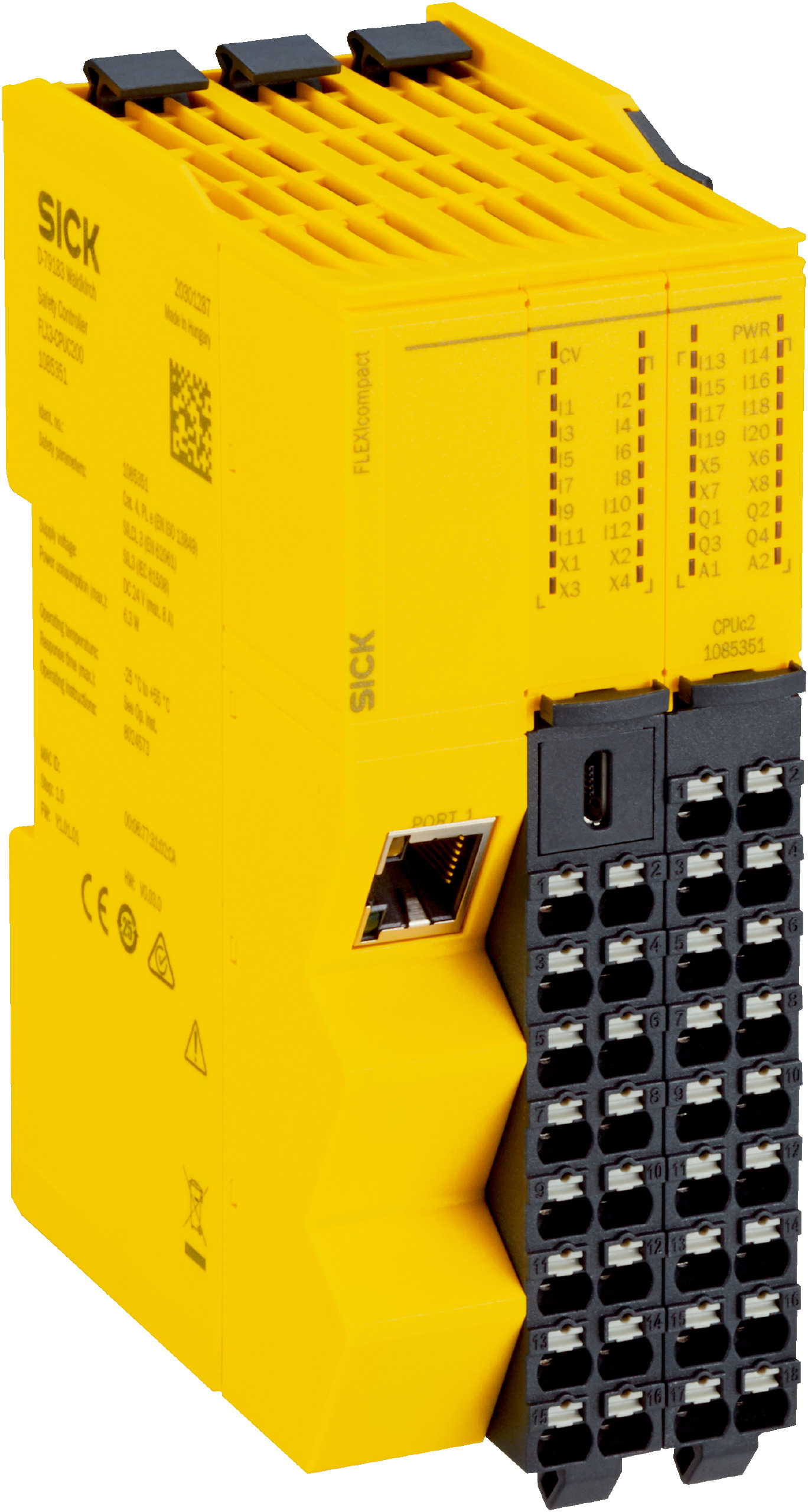

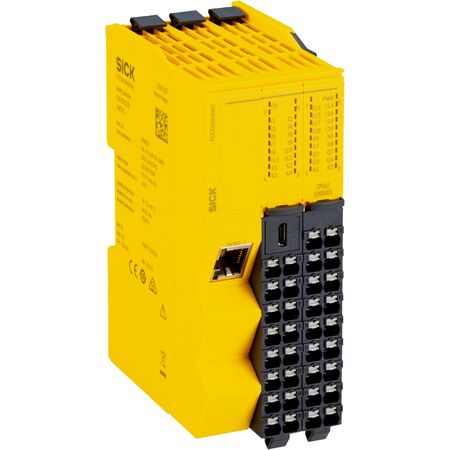

Modular Safety Controller CPU FLX3-CPUC200 | 20 Safety Inputs | SIL 3 Compliance | by SICK
The Modular Safety Controller CPU FLX3-CPUC200 is designed for industrial safety control systems, featuring 20 safety inputs and 4 safety outputs. Ideal for machine safety monitoring and automation applications, it ensures compliance with SIL 3 and PL e standards, enhancing operational safety and efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Safety inputs: 20
- Safety outputs: 4
- Test outputs: 8
- Fieldbus: Modbus® TCP
- Configuration method: Via Safety Designer software
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (ISO 13849-1)
- Performance level: PL e (ISO 13849-1)
- PFHD: 4 × 10^-9
- Mission time: 20 years (ISO 13849-1)
- Connection type: Front connector with spring terminals
- Power consumption: 3 W (DC)
- Power loss: ≤ 6.3 W
- Supply voltage: 24 V DC (16.8 V ... 30 V)
- Protection class: III (EN 61140)
- Overvoltage category: II (EN 61131-2)
- Mounting: 35 mm × 7.5 mm mounting rail (IEC 60715)
- Enclosure rating: IP20 (EN 60529)
- Operating temperature: –25 °C to +55 °C
- Storage temperature: –25 °C to +70 °C
- Vibration resistance: 1 g, 5 Hz to 200 Hz
- Shock resistance: 15 g, 11 ms
- Dimensions (H x L x W): 124.7mm x 85.5mm x 46.2mm
- Weight: 0.282 kg
Key Features
- Central process unit for modular safety controller
- Monitors and logically processes all incoming safety signals
- 20 safety inputs, 4 safety outputs, 8 test outputs
- Supports Modbus® TCP fieldbus communication
- Configurable via Safety Designer software
- Fast shut-off and short-circuit detection
- Safe series connection with Flexi Loop
- Data exchange via Modbus® TCP and SLMP
- LED display elements for status indication
Professional Installation Requirements
- Installation and configuration should be performed by qualified professionals familiar with industrial safety systems and electrical standards.
Applications
- Industrial safety control systems
- Machine safety monitoring and control
- Automation safety applications requiring SIL 3 and PL e compliance
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enhances machine safety reducing risk of accidents and environmental hazards
- Supports efficient safety management reducing downtime and waste
Warranty Information
Warranty details available upon request from SICK; typically includes coverage against manufacturing defects.
Available Now
The SICK FLX3-CPUC200 Modular Safety Controller Main Module is available for immediate purchase, ideal for industrial automation and safety control applications.
