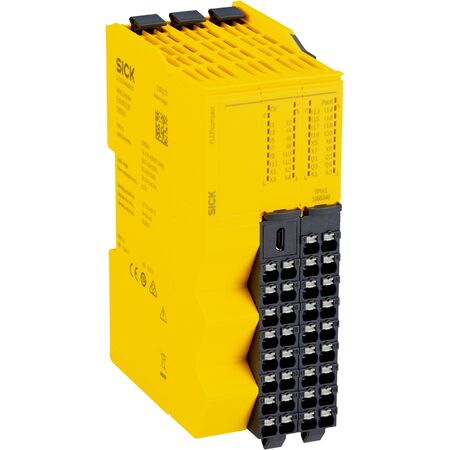

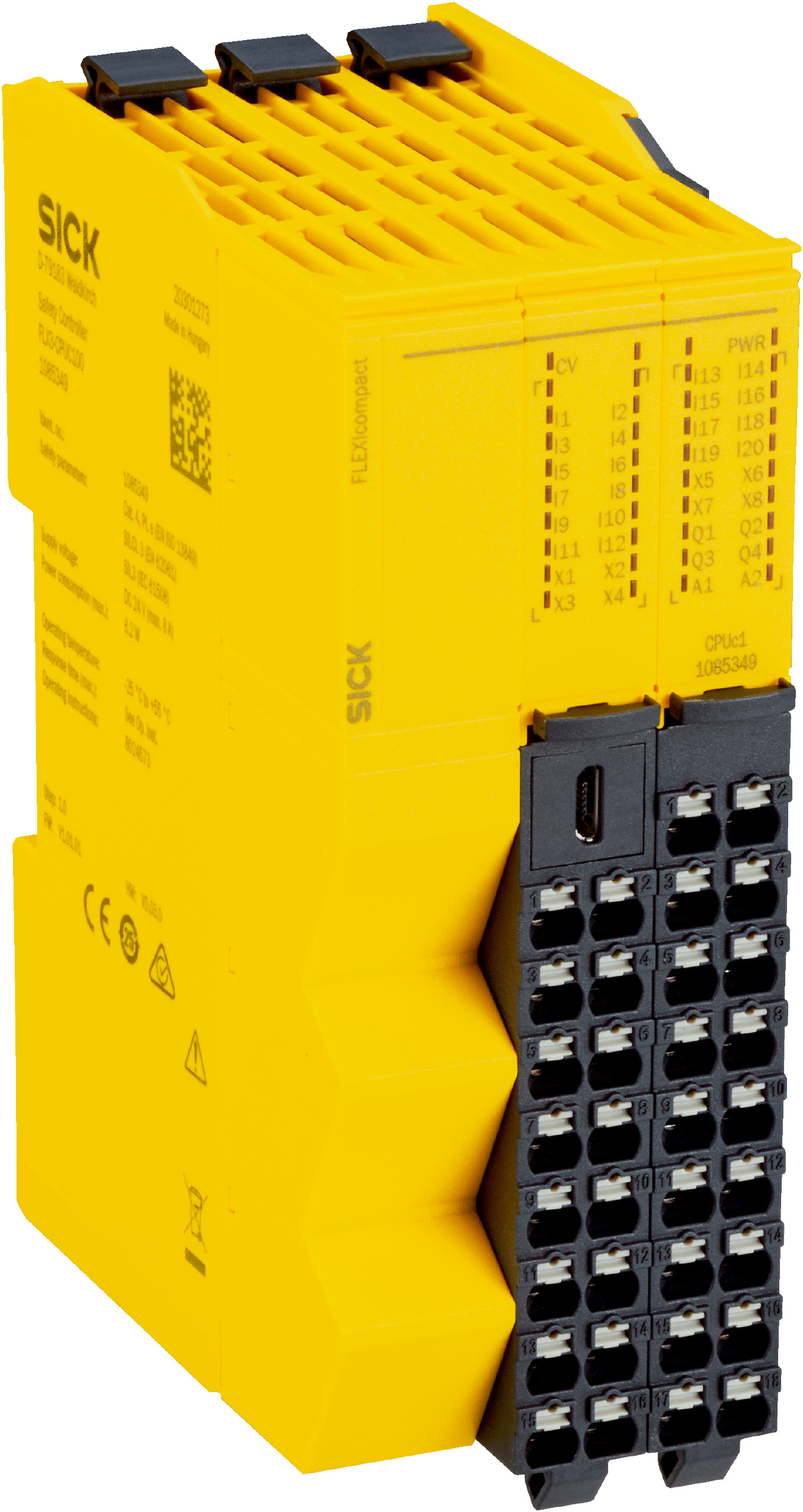

Modular Safety Controller Main Module | 20 Safety Inputs | 4 Safety Outputs | SIL 3 Certified | by SICK
The Modular Safety Controller Main Module FLX3-CPUC100 is designed for industrial safety control systems, featuring 20 safety inputs and 4 safety outputs for comprehensive monitoring. With a SIL 3 safety integrity level and programmable logic, it ensures reliable operation in automation safety applications, enhancing machine safety and reducing risks.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Safety inputs: 20
- Safety outputs: 4
- Test outputs: 8
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (ISO 13849-1)
- Performance level: PL e (ISO 13849-1)
- Mean probability of dangerous failure per hour (PFHD): 4 × 10^-9
- Mission time: 20 years (ISO 13849-1)
- Connection type: Front connector with spring terminals
- Voltage supply: 24 V DC (16.8 V to 30 V), PELV or SELV
- Power consumption: 3 W (DC), Power loss ≤ 6.2 W
- Protection class: III (EN 61140)
- Interference resistance: EN 61000-6-2
- Interference emission: EN 61000-6-4
- Enclosure rating: IP20 (EN 60529)
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -25 °C to +70 °C
- Vibration resistance: 1 g, 5 Hz to 200 Hz
- Shock resistance: 15 g, 11 ms
- Mounting: 35 mm × 7.5 mm mounting rail (IEC 60715)
- Dimensions (H x L x W): 125mm x 86mm x 46mm
- Weight: 0.277 kg
Key Features
- Central process unit of modular safety controller
- Monitors and logically processes all incoming signals
- 20 safety inputs and 4 safety outputs
- 8 test outputs for device and wiring testing
- Programmable logic with fast shut-off capability
- Safe series connection with Flexi Loop
- Configuration via Safety Designer software
- LED display elements for status indication
Professional Installation Requirements
- Installation must be performed by qualified personnel familiar with safety control systems and electrical standards to ensure compliance and safety.
Applications
- Industrial safety control systems
- Machine safety monitoring and control
- Automation safety applications
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enhances machine safety reducing risk of accidents and environmental hazards
- Supports efficient safety management reducing downtime and waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK FLX3-CPUC100 Main Module Safety Controller is available for immediate purchase, ideal for industrial safety and automation applications.
