Modular Sensor Connection Module | IP20 Enclosure | 5 LED Indicators | by SICK
The Modular Sensor Connection Module is designed for seamless integration in industrial automation, featuring a robust IP20 enclosure and 5 LED optical indicators for status monitoring. With multiple serial interfaces and a low power consumption of only sensor power plus 0.5 W, it's perfect for factory and process automation applications, ensuring reliable performance and easy configuration via SOPAS ET software.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Power consumption: Sensor power consumption + 0.5 W
- Housing material: Polycarbonate
- Enclosure rating: IP20
- Protection class: III
- Scanner connection: 15-pin D-Sub HD female connector
- Service plug: 9-pin D-Sub plug (internal)
- Interfaces: Serial (RS-232, RS-422, RS-485), CAN (depending on sensor)
- Optical indicators: 5 LEDs
- Operating temperature range: -35 °C to +40 °C
- Storage temperature range: -20 °C to +70 °C
- Permissible relative humidity: < 90%, non-condensing
- Configuration software: SOPAS ET
- Dimensions (H x L x W): 70mm x 192mm x 167mm
- Weight: 1.43 kg
Key Features
- Modular connection module for one sensor
- Includes 2 A fuse for protection
- Host and AUX interface available on face plate
- On-board power supply CMP490 with US power cord
- Supports cloning module (CMC) depending on sensor connected
- Polycarbonate housing with IP20 enclosure rating
- Multiple serial interfaces: RS-232, RS-422, RS-485
- CAN interface support depending on sensor
- 5 LED optical indicators for status
- Configuration via SOPAS ET software
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor systems and electrical safety standards.
Applications
- Industrial automation sensor connection
- Modular sensor system integration
- Factory and process automation
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption with only sensor power plus 0.5 W additional usage
- Durable polycarbonate housing extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now

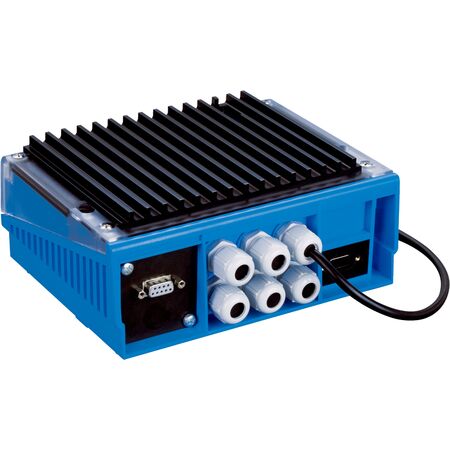

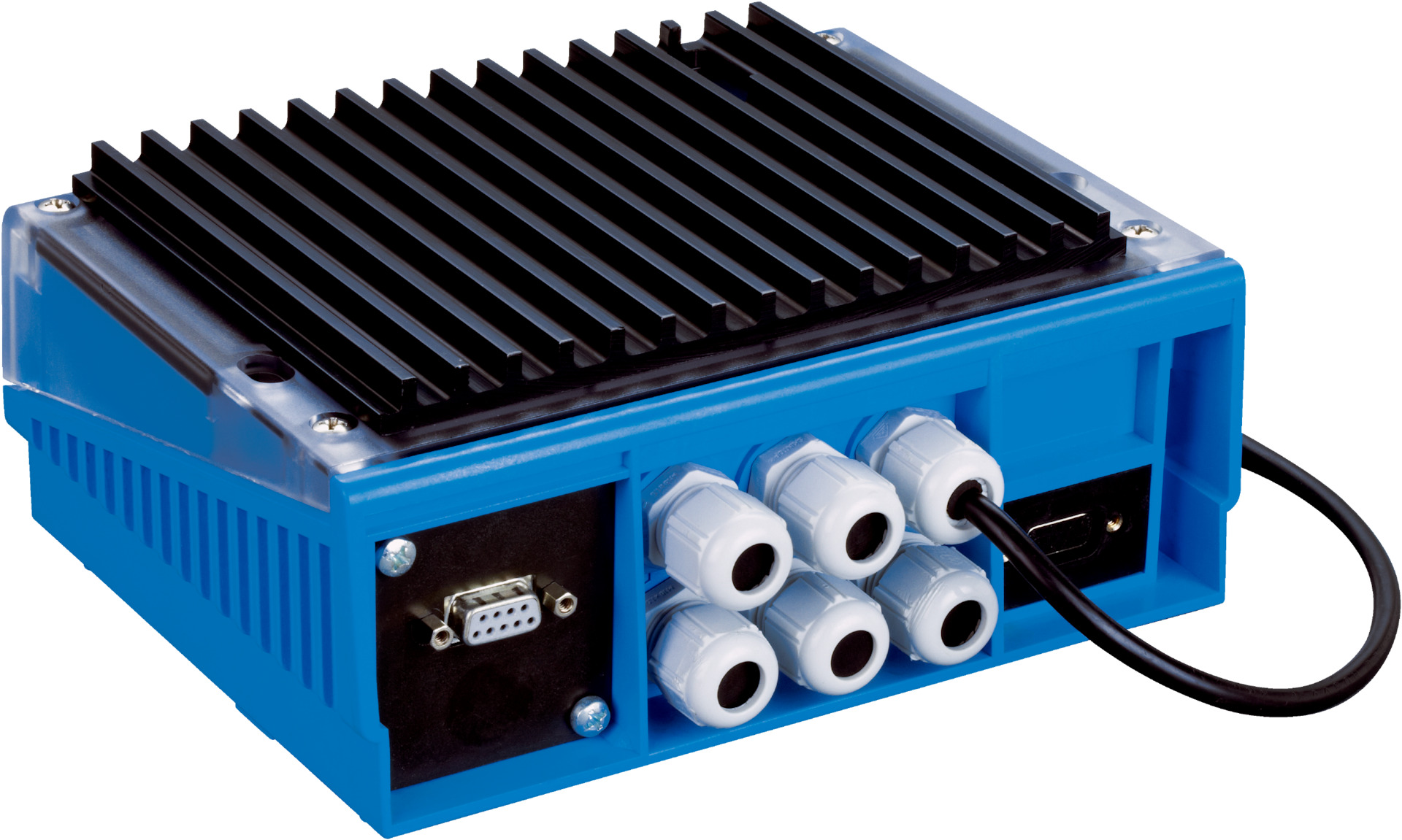

The SICK CDM420-0108 Modular Connection Module Kit is available for immediate purchase, ideal for industrial automation and sensor integration applications.
