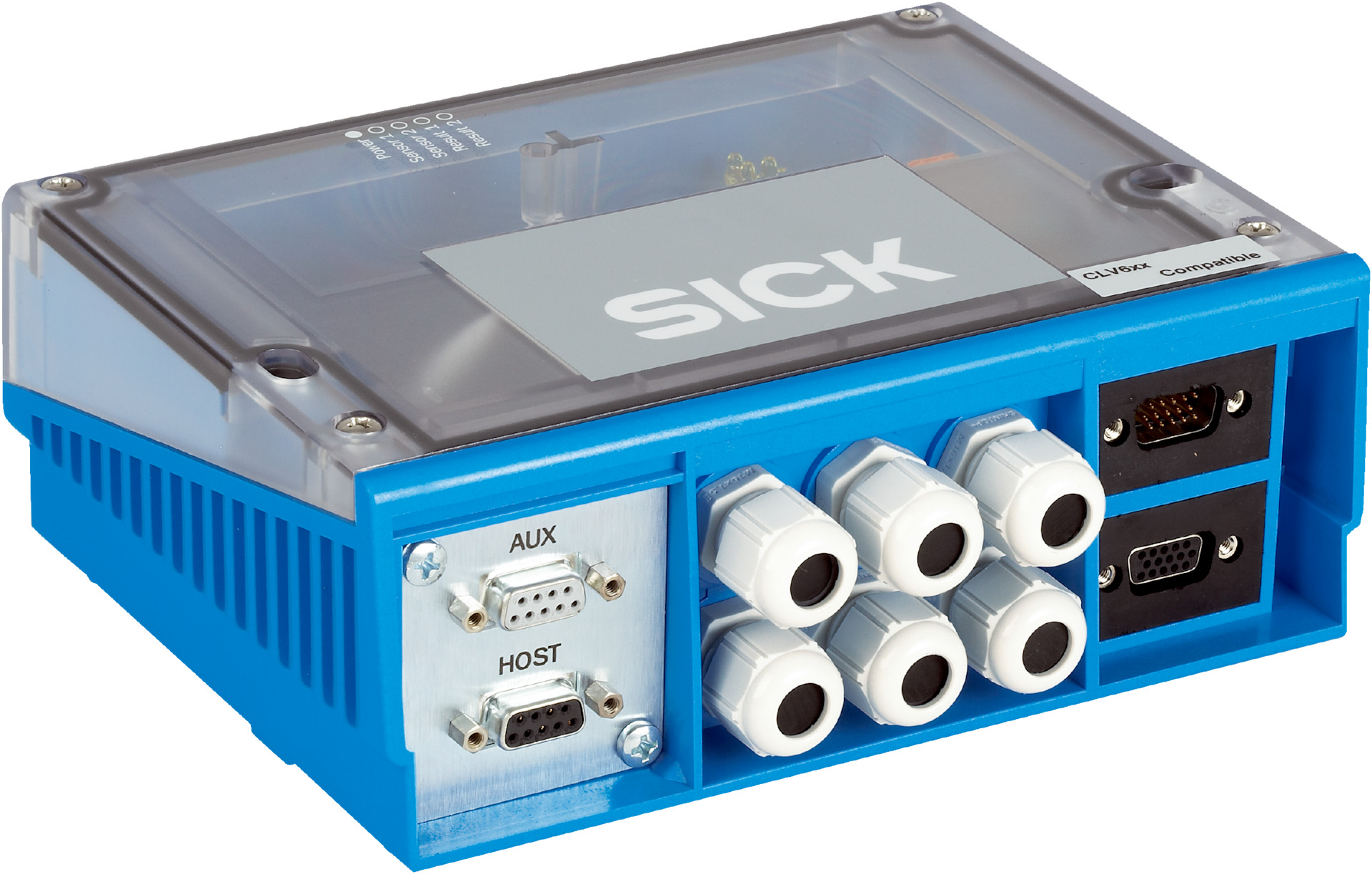

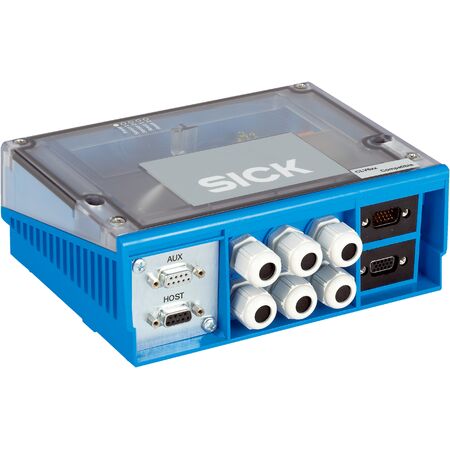

Modular Sensor Connection Module CDM490-0101 | IP65 Rated | 11 LED Indicators | by SICK
The Modular Sensor Connection Module CDM490-0101 is designed for seamless industrial automation sensor integration. With an IP65 rated polycarbonate housing and 11 LED optical indicators, it ensures robust protection and clear status monitoring. Ideal for connecting CLV69x and LMS400 sensors, this module supports various serial communication interfaces, making it perfect for modular system setups.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Modular Sensor Connection Module CDM490-0101 | IP65 Rated | 11 LED Indicators | by SICK
Brand: SICK
SKU: 1025365
Alternatively Known As: Modular Sensor Connection Module, Sensor Interface Module, CDM490 Connection Unit
Technical Specifications
- Power consumption: Sensor power consumption + 0.5 W
- Housing material: Polycarbonate
- Enclosure rating: IP65
- Protection class: III
- Scanner connection: 15-pin D-Sub HD female and male connectors
- Service plug: 9-pin D-Sub plug (internal)
- Interfaces: Serial (RS-232, RS-422, RS-485) depending on sensor, CAN depending on sensor
- Digital inputs and outputs: Depending on sensor connected
- Optical indicators: 11 LEDs
- Configuration software: SOPAS ET
- Operating temperature range: -35 °C to +40 °C
- Storage temperature range: -20 °C to +70 °C
- Permissible relative humidity: < 90%, non-condensing
- Dimensions (H x L x W): 70mm x 192mm x 167mm
- Weight: 0.87 kg
Key Features
- Modular connection module for one sensor
- Host and AUX interface available on face plate
- Supports cloning module (CMC), display module (CMD), and power supply module (CMP)
- IP65 rated polycarbonate housing for robust protection
- 11 LED optical indicators for status monitoring
- Supports serial communication (RS-232, RS-422, RS-485) depending on sensor connected
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor systems and electrical safety standards.
Applications
- Industrial automation sensor integration
- Connection module for CLV69x and LMS400 sensors
- Modular system setups requiring Host and AUX interfaces
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Low power consumption with only 0.5 W additional power usage
- Durable polycarbonate housing extends product lifespan reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK CDM490-0101 Modular Connection Module is available for immediate purchase, ideal for industrial automation and sensor integration applications.
