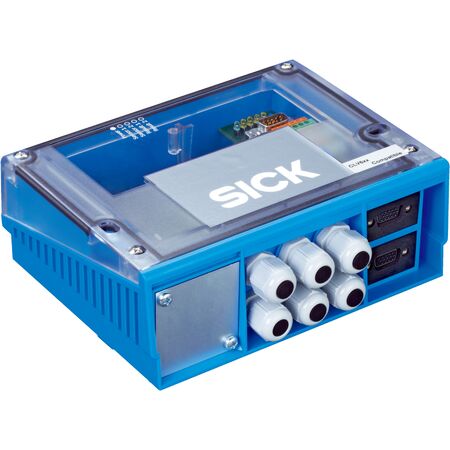

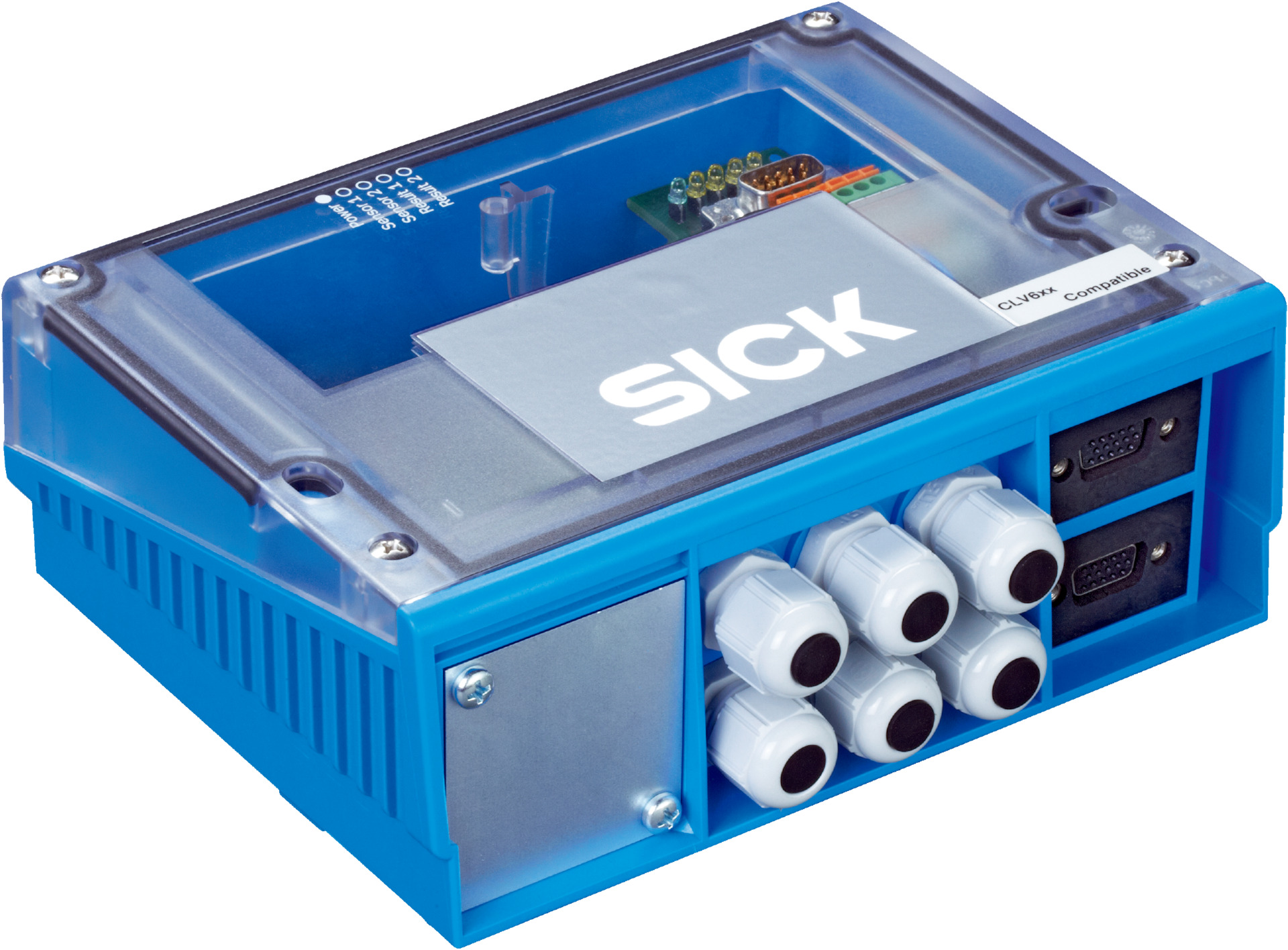

Modular Sensor Connection Module | IP65 Rated | Supports Multiple Interfaces | by SICK
The Modular Sensor Connection Module is designed for seamless integration of two sensors in industrial automation. With robust IP65-rated polycarbonate housing and support for multiple interfaces like Ethernet and RS-232, it ensures reliable connectivity and monitoring. Ideal for factory floor sensor networking and mobile handheld scanner connectivity, this module is built for efficiency and durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Modular Sensor Connection Module | IP65 Rated | Supports Multiple Interfaces | by SICK
Brand: SICK
SKU: 1028487
Alternatively Known As: Modular Sensor Connection Module, Sensor Interface Module, SICK CDM420 Module
Technical Specifications
- Power consumption: Sensor power consumption + 0.5 W
- Housing material: Polycarbonate
- Enclosure rating: IP65
- Protection class: III
- Weight: 800 g
- Dimensions (L x W x H): 192 mm x 167 mm x 70 mm
- Scanner connection: 15-pin D-Sub HD female connector
- Service plug: 9-pin D-Sub plug (internal)
- Interfaces: Ethernet, RS-232, TCP/IP, RS-485, CAN, PROFIBUS DP, DeviceNet™ (fieldbus gateway required for some)
- Optical indicators: 5 LEDs
- Configuration software: SOPAS ET
- Operating temperature: -35 °C to +40 °C
- Storage temperature: -35 °C to +70 °C
- Permissible relative humidity: < 90%, non-condensing
- Dimensions (H x L x W): 70mm x 192mm x 167mm
- Weight: 0.8 kg
Key Features
- Modular connection module supporting two sensors
- Compatible with Lector62x, CLV61x - CLV65x, RFH6xx, RFU62x scanners
- Supports cloning module (CMC), display module (CMD), power supply module (CMP), and fieldbus gateway (CMF)
- Multiple interface support including Ethernet, RS-232, TCP/IP, RS-485, CAN, PROFIBUS DP, and DeviceNet™
- 5 LED optical indicators for status monitoring
- Configuration via SOPAS ET software
- Robust polycarbonate housing with IP65 enclosure rating
- Protection class III
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor systems and communication protocols to ensure proper integration and safety compliance.
Applications
- Industrial automation sensor integration
- Factory floor sensor networking
- Mobile handheld scanner connectivity
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with only 0.5 W additional power usage beyond sensor requirements
- Durable IP65 rated housing protects against dust and water, extending product lifespan and reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK CDM420-0004 Modular Connection Module is available for immediate purchase, ideal for industrial automation and sensor networking applications.
