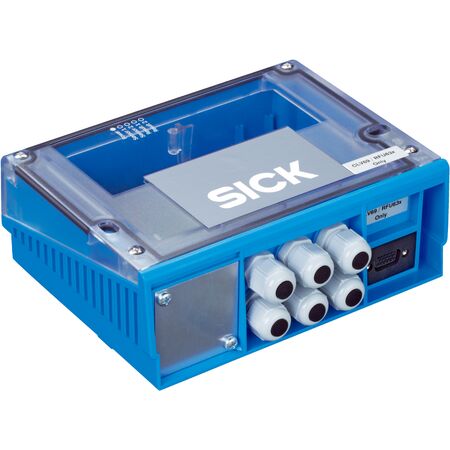

Modular Sensor Connection Module | IP65 Rated | Supports Multiple Interfaces | by SICK
The Modular Sensor Connection Module is designed for seamless integration in industrial automation systems, featuring IP65 protection and support for various interfaces including Ethernet and RS-232. Ideal for RFID read/write device integration, this module ensures reliable communication and low power consumption, making it a perfect choice for enhancing sensor connectivity in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Power consumption: Sensor power + 0.5 W
- Housing material: Polycarbonate
- Enclosure rating: IP65
- Protection class: III
- Scanner connection: 15-pin D-Sub HD female connector
- Service plug: 9-pin D-Sub plug (internal)
- Interfaces: Ethernet, RS-232, TCP/IP, RS-485, CAN, PROFIBUS DP, DeviceNet™
- Optical indicators: 5 LEDs
- Configuration software: SOPAS ET
- Operating temperature range: -35 °C to +40 °C
- Storage temperature range: -35 °C to +70 °C
- Permissible relative humidity: < 90%, non-condensing
- Dimensions (H x L x W): 70mm x 192mm x 167mm
- Weight: 0.8 kg
Key Features
- Modular connection module for one sensor with 2 A fuse
- Supports Lector series RFID read/write devices CLV61x - CLV65x CLV69x
- Cloning module support (CMC)
- Supports display module (CMD), power supply module (CMP), and fieldbus gateway (CMF)
- Multiple interface support including Ethernet, RS-232, TCP/IP, RS-485, CAN, PROFIBUS DP, and DeviceNet™
- 5 LED optical indicators for status
- Configuration via SOPAS ET software
Professional Installation Requirements
- Installation should be performed by a qualified technician familiar with industrial sensor modules and communication interfaces to ensure proper integration and safety.
Applications
- Industrial automation systems
- RFID read/write device integration
- Sensor connection and communication modules
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with only sensor power plus 0.5 W additional consumption
- Durable polycarbonate housing with IP65 rating for long-lasting use in industrial environments
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK CDM420-0006 Modular Connection Module is available for immediate purchase, ideal for industrial automation and RFID sensor integration applications.
